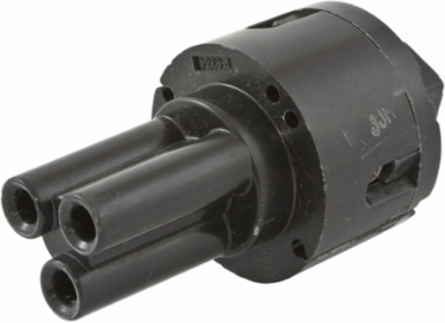

Hubbell Wiring Device-Kellems IN530FS1 Insulgrip Female Replacement Interior, 30A 5-Wire, Watertight
Hubbell Wiring Device-Kellems IN530FS1 Insulgrip Female Replacement Interior, 30A 5-Wire, Watertight
- MPN: IN530FS1
- UPC: 783585323923
- PPN: HBL-IN530FS1
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$324.28/ EA
Description
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Replacement Interior, For 30A 5-Wire Style 1, Furnished with Screws, Black Thermoset Polyester
Features
- Thermoset polyester contact carrier
- Pin Chamber confines arcing within the interior
- Large, funneled terminal entrance holes
- Watertight
Specifications
Specifications
- Country of Origin
- United States
- Width
- 2.418 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 3,000V AC;Electrical - Max Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V-0 classification;Environmental - Ingress Protection - IP67 Suitability;Environmental - Operating Temperatures - Maximum Continuous: 75° C;Minimum -40° C w/o impact;Mechanical - Impact Resistance - In accordance with UL746C;Mechanical - Product Identification - Identification and ratings are a part of the external label and molded into the receptacle mount;Mechanical - Terminal Identification - Terminals identified in accordance with North American and International conventions
- Environmental Conditions
- Watertight When Installed
- Number of Poles
- 4-Pole
- Special Features
- Watertight
- Type
- Replacment Interior
- Voltage Rating Description
- 600/250V AC/DC
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- Standard Sized Product
- Number Of Poles
- 4-Pole
- Style
- For Receptacles/Connectors, Style 1
- Description - Invoice
- PS, INS, REPL, INTERIOR, FEM S1, 30A S1
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Series
- Accessories
- BOX SIZE
- 5.900x8.600x7.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585323923
- Each - Pack Description
- Each
Current / Amperage Rating30 A
Industry Standard(s)UL Listed
Amperage Rating30 A
NEMA RatingNon-NEMA
Number of Wires5-Wire
StandardUL Listed
Voltage Rating600/250V AC/DC V
General Literature Asset 1 Display TextPulp & Paper Solutions
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires5-Wire
Class CodeA12
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA12A200
MaterialThermoplastic
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.2 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
