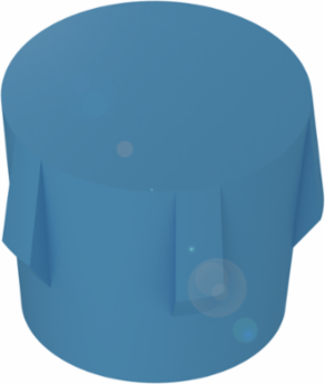

Balluff BIS M-113-03/L HF data carriers (13.56 MHz) BIS M-113-03/L
Balluff BIS M-113-03/L HF data carriers (13.56 MHz) BIS M-113-03/L
- MPN: BIS M-113-03/L
- PPN: BAL-BIS018Y
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$18.46/ EA
Description
BIS M uses high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693 and/or DIN ISO 14443. The wide variety of passive data carriers with various dimensions, configurations, memory sizes, operating temperatures, materials, antenna technology, mounting options and ranges allows you to tackle nearly any technical task. BIS M is the most robust system with absolute data security.
Specifications
Specifications
- Product Group
- HF (13.56 MHz)
- Antenna type
- round
- Memory type
- EEPROM
- User data, read/write
- 112 Byte
- Ambient temperature
- -40-85 °C
- IP rating
- IPx8
- Approval/Conformity
- CE, WEEE
DimensionØ 4.35 x 3.6 mm
UID serial number, read-only8 Byte
Supported data carrier typesDIN ISO 15693
Storage temperature-40-85 °C
Housing materialEpoxy-resin/fiberglassPVC
Installationmetal-free (clear zone)on metalflush in metal
