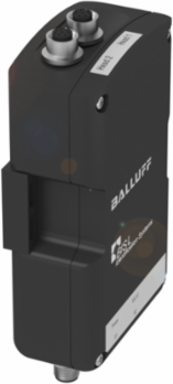

Balluff BIS M-6000-007-050-00-ST15 HF Processor Unit, 13.56 MHz, ABS Housing, IP65, 19.2-28.8 VDC

MPN: BIS M-6000-007-050-00-ST15
PPN: BAL-BIS00N1

Spec sheet

Compare

Loading compare button...

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3573.98/ EA

Qty:

Loading add to cart quantity...

Description

BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693. The processor units process the data captured by the read heads and relay it to the industrial fieldbus, which communicates with the PLC/PC. With type BIS V processor units, you can operate up to four read heads at once – regardless of whether they are LF, HF or UHF.

Specifications

Product Group: HF (13.56 MHz)

Supported RFID technologies: HF 13.56 MHz (BIS M)

Operating voltage Ub: 19.2-28.8 VDC

Ambient temperature: 0-60 °C

Approval/Conformity: CE, cULus, WEEE

InterfaceRS232

Number of connectable R/W heads / antennas2

Housing materialABS

IP ratingIP65 with connector

ConnectionMale, 4-pinMale, 5-pin
