Balluff

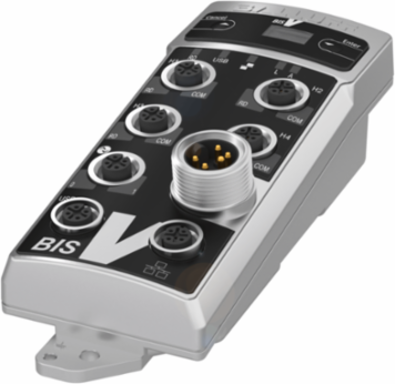

Balluff BIS V-6107-039-C005 HF Processor Unit, 13.56 MHz, Connects 4 R/W Heads, Zinc Housing

HF Processor Unit, 13.56 MHz, Connects 4 R/W Heads, Zinc Housing
  • MPN: BIS V-6107-039-C005
  • PPN: BAL-BIS0186

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1799.72/ EA

Description

BIS M uses the high frequency (HF) 13.56 MHz and supports the standard according to DIN ISO 15693. The processor units process the data captured by the read heads and relay it to the industrial fieldbus, which communicates with the PLC/PC. With type BIS V processor units, you can operate up to four read heads at once – regardless of whether they are LF, HF or UHF.

Specifications

Specifications

Product Group
Multi-Frequency Processor
Supported RFID technologies
LF 125 kHz (BIS VL), HF 13.56 MHz (BIS VM), UHF 860/960 MHz (BIS VU)
Operating voltage Ub
24 V DC LPS Class 2
Ambient temperature
0-60 °C
Approval/Conformity
CE, cULus, WEEE
InterfaceEthernet TCP/IP;USB
Number of connectable R/W heads / antennas4
Housing materialZinc, Die casting
IP ratingIP65 with connector
ConnectionM12x1-Female, 4-pin, D-codedM12x1-Female, 5-pin, A-coded7/8"-Male, 5-pin
