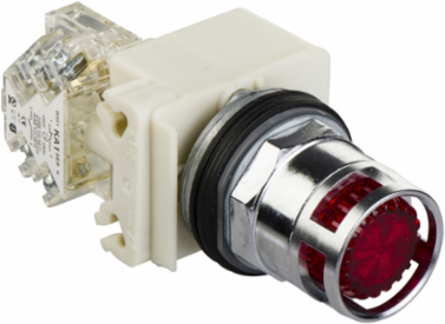

Schneider Electric 9001K3L35LRRH13 Illuminated Push-Button 30mm Red LED 24-28V IP66
Schneider Electric 9001K3L35LRRH13 Illuminated Push-Button 30mm Red LED 24-28V IP66
- MPN: 9001K3L35LRRH13
- UPC: 785901557999
- PPN: SCH-9001K3L35LRRH13
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$269.00/ EA
Description
This illuminated push-button from Schneider Electric combines dependable functionality with a sleek design, making it an ideal choice for automation and control applications. Featuring a vibrant red LED that operates within a voltage range of 24-28V, it enhances visibility and ensures effective operation even in low-light conditions. Encased in an IP66-rated housing, this durable device is engineered to withstand harsh environments, ensuring reliability in outdoor or industrial settings. With a 30mm size, it seamlessly integrates into various control panels, providing a user-friendly interface that is both practical and visually appealing.
Specifications
- Rated Supply Voltage
- 24-28 V AC/DC
- [Icm] Rated Short-Circuit Making Capacity
- 12 kA 600 V AC-15, 7200 VA; 15 kA 480 V AC-15, 7200 VA; 30 kA 240 V AC-15, 7200 VA; 60 kA 120 V AC-15, 7200 VA
- Mechanical Durability
- 5,000,000 cycles
- Contacts Material
- silver alloy
- Positive Opening
- without
- Size
- 30 mm
- Overall Height
- 42 mm
- Overall Depth
- 106 mm
- Operator Profile
- red flush, unmarked
- Shape of Signaling Unit Head
- octagonal
- Light Source
- LED
- Operator Additional Information
- metal guard
- IP Degree of Protection
- IP66 IEC 60529
- Overvoltage Category
- class II IEC 61140
- Rated Impulse Withstand Voltage
- 2.5 kV IEC 60947-1
- Product Certifications
- NEMA; UL 508
- Ambient Air Temperature for Operation
- -25 to 70 °C (-13 to 158 °F)
- Vibration Resistance
- 7 gn (2-500 Hz) IEC 60068-2-6
- Net Weight
- 0.175 kg (0.39 lb)
Short-Circuit Protection10 A cartridge fuse IEC 60947-5-1
Rated Breaking Capacity1.2 kA 600 V AC-15, 720 VA; 1.5 kA 480 V AC-15, 720 VA; 3 kA 240 V AC-15, 720 VA; 6 kA 120 V AC-15, 720 VA; 0.1 kA 600 V DC-13; 0.27 kA 250 V DC-13; 0.55 kA 125 V DC-13
Contacts Type and Composition1 C/O
Contact Operationstandard
Tightening Torque0.8 N·m IEC 60947-1
Mounting Diameter30 mm (1.18 in)
Overall Width54 mm
Operator Typespring return
Bezel Materialmetal
Bulb BaseBA 9s
Light Source Colourred
Connections - Terminalsscrew clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
NEMA Degree of ProtectionNEMA 1, 2, 3, 3R, 4, 12, 13
Rated Insulation Voltage250 V IEC 60947-1
StandardsJIS C 4520; CSA C22.2 No 14; JIS C 852; UL 508; EN/IEC 60947-5-4; EN/IEC 60947-1; EN/IEC 60947-5-1
Protective TreatmentTC
Ambient Air Temperature for Storage-40 to 70 °C (-40 to 158 °F)
Shock Resistance50 gn IEC 60068-2-27
Country of OriginMexico
