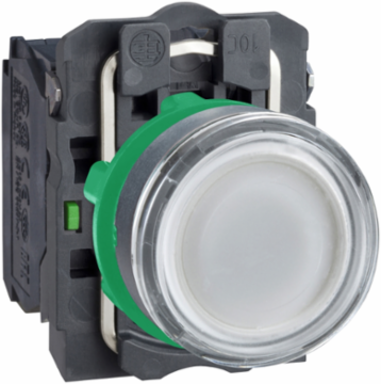

Schneider Electric XB5AW3165 Harmony XB5 Illuminated Push Button, 22mm, 1NO + 1NC, IP66/IP67/IP69K
Schneider Electric XB5AW3165 Harmony XB5 Illuminated Push Button, 22mm, 1NO + 1NC, IP66/IP67/IP69K
- MPN: XB5AW3165
- PPN: SCH-XB5AW3165
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$84.74/ EA
Description
This Harmony XB5, plain lens illuminated modular white push button operates with a spring return / impulse mechanism, is supplied with 250V AC/DC and uses screw-clamp terminals. This illuminated push button with integral transformer provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Specifications
Environment
- Product Certifications
- UL listed || BV || GL || LROS (Lloyds register of shipping) || DNV || CSA
- Ambient Air Temperature For Operation
- -40-55 °C
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529 || IP69 || IP69K || IP67
- Overvoltage Category
- class II IEC 60536
- Protective Treatment
- TH
Ik Degree Of ProtectionIK05 conforming to IEC 50102
StandardsUL 508 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
Complementary
- Contacts Usage
- standard contacts
- Terminals Description Iso N°1
- (13-14)NO || (21-22)NC
- Operating Force
- 3.5 N NC changing electrical state || 3.8 N
- Contacts Material
- silver alloy (Ag/Ni)
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

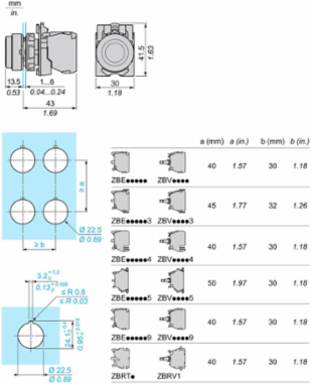

- Depth
- 54 mm
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Height42 mm
Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Operating Travel1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Positive Openingwith IEC 60947-5-1 appendix K
Net Weight0.057 kg
Device Presentationcomplete product
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Signalling Typesteady
Mechanical Durability10000000 cycles
Width30 mm
Tightening Torque0.8-1.2 N.m IEC 60947-1
Specifications
- [Us] Rated Supply Voltage
- <= 250 V
- Range Of Product
- Harmony XB5
- Light Block Supply
- direct <2.4 W
- Type Of Operator
- spring return
- Shape Of Signaling Unit Head
- round
- Fixing Collar Material
- plastic
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Sale Per Indivisible Quantity
- 1
- Contact Operation
- slow-break
- Device Short Name
- XB5
Operator Additional Informationwith plain lens
Light Sourcebulb not included
Mounting Diameter22 mm
Product Or Component Typeilluminated push-button
Cap/Operator Or Lens Colourwhite
Head Typestandard
Contacts Type And Composition1 NO + 1 NC
Bezel Materialdark grey plastic
Operator Profilewhite flush, unmarked
Bulb BaseBA 9s
