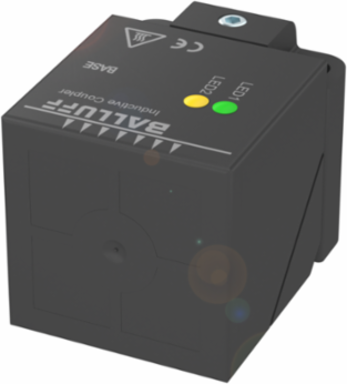

Balluff BIC 2B0-ITA50-Q40KFU-SM4A5A Inductive Coupler for IO-Link Signal Transmission, 500 mA Output Current, IP67
Balluff BIC 2B0-ITA50-Q40KFU-SM4A5A Inductive Coupler for IO-Link Signal Transmission, 500 mA Output Current, IP67
- MPN: BIC 2B0-ITA50-Q40KFU-SM4A5A
- PPN: BAL-BIC0071
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1210.82/ EA
Description
Experience reliable and efficient signal transmission with the inductive couplers designed for IO-Link applications by Balluff. This compact device operates within a transmission distance of 0 to 5 mm and delivers a robust output voltage of 24 VDC, making it ideal for various industrial environments. With a bi-directional signal type and a data transfer rate of COM2 at 38.4 kBaud, it ensures quick and effective communication between devices. The coupler is built to withstand challenging conditions, featuring an IP67 rating for dust and water resistance, and operates seamlessly within an ambient temperature range of -5 to 65 °C. Its durable PBTP housing and M12x1-Female connector ensure a secure connection, while the additive cycle time of just 2.0 ms enhances overall system efficiency.
Specifications
Specifications
- Country of Origin
- Hungary
- Transmission distance
- 0...5 mm
- Interface
- IO-Link 1.1
- Output voltage
- 24 VDC
- Output current max.
- 5 A / 0.05 ms
- Dimension
- 40 x 40 x 62 mm
- IP rating per IEC 60529
- IP67
- Additive cycle time
- Device + 2.0 ms
- Process data out
- 0…32 bytes
Signal typebi-directional
ComponentRemote
ConnectionConnector, M12x1-Female, 5-pin
Rated output current500 mA
Housing materialPBTP
Ambient temperature-5...65 °C
Data transfer rateCOM2 (38.4 kBaud)
Process data in0…32 bytes
SIO modeyes
