Balluff

Balluff BES M30EE1-PSC40F-S04G-S Inductive full-metal sensors BES M30EE1-PSC40F-S04G-S

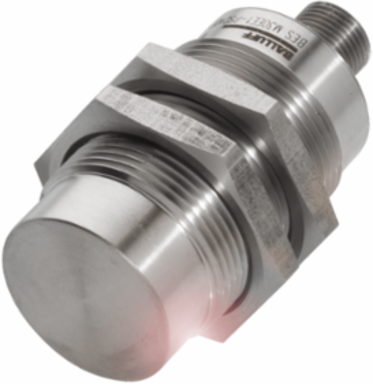

Inductive full-metal sensors BES M30EE1-PSC40F-S04G-S
  • MPN: BES M30EE1-PSC40F-S04G-S
  • PPN: BAL-BES02YC

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$232.64/ EA

Description

Balluff's especially resistant stainless steel inductive sensors are custom developed for use in very harsh environments. Housing and sensor front manufactured from stainless steel. The robust active surface is resistant to impacts as well as mechanical stresses and abrasive media.

Specifications

Specifications

Dimension
Ø 30 x 63.5 mm
Installation
non-flush
Switching output
PNP Normally open (NO)
Housing material
Stainless steel
Connection
Connector, M12x1-Male, 4-pin
Ambient temperature
-25-70 °C
IP rating
IP67
StyleM30x1.5
Range40 mm
Switching frequency100 Hz
Material sensing surface1.4305
Operating voltage Ub10-30 VDC
Pressure rating max.40 bar
Approval/ConformityCE, cULus, EAC, WEEE
