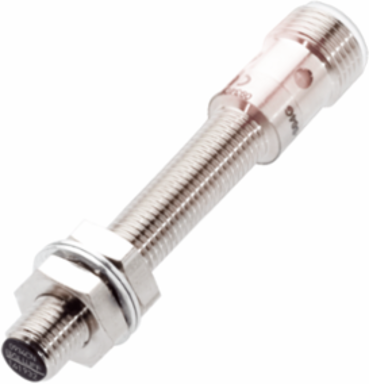

Balluff BES M08MH1-PSC15B-S04G Inductive Sensor Ø 8 x 65 mm, PNP NO, IP67, 1000 Hz

Inductive Sensor Ø 8 x 65 mm, PNP NO, IP67, 1000 Hz
  • MPN: BES M08MH1-PSC15B-S04G
  • PPN: BAL-BES0027

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$59.18/ EA

Description

Inductive standard sensors from Balluff are engineered for precision and reliability in automation and control applications. Designed for flush mounting, these sensors feature a robust M8x1 style with a nickel-plated brass housing that ensures durability and resistance to environmental factors, boasting an IP67 rating. With a switching output of PNP Normally Open (NO) and a high switching frequency of 1000 Hz, they provide accurate sensing capabilities within a range of 1.5 mm, making them ideal for various industrial settings. Operating effectively within a temperature range of -25 to 70 °C and compatible with a 12-30 VDC power supply, these sensors are a dependable choice for enhancing operational efficiency in your systems.

Specifications

Switching output
PNP Normally Open (NO)
Switching frequency
1000 Hz
Ambient temperature
-25 to 70 °C
Rated insulation voltage
75 V DC
Load capacitance max
1 µF
Voltage drop max
2 V
Polarity reversal protected
Yes
Hysteresis max
15 %
Temperature drift max
10 %
Dimension
Ø 8 x 65 mm
Connection
Connector, M12x1 Male, 4-pin, A-coded
Housing material
Brass
Surface protection
Nickel plated
Operating voltage12-30 VDC
Operating distance1.5 mm
Rated operating current100 mA
Rated short circuit current100 A
Output resistance33 kOhm + D
Short circuit protectionYes
Assured operating distance1.2 mm
Repeat accuracy max5 %
MTTF (40 °C)880 a
StyleM8x1
InstallationFlush mounting
Material sensing surfacePA 12
Approval/ConformityCE, cULus, EAC, WEEE
