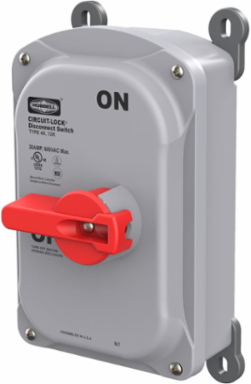

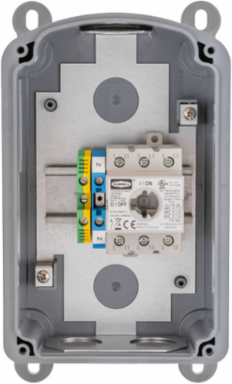

Hubbell Wiring Device-Kellems HBLDS30NK Industrial Grade Motor Disconnect 3 Pole 30A 600V AC IP69k NEMA Type 4X
Hubbell Wiring Device-Kellems HBLDS30NK Industrial Grade Motor Disconnect 3 Pole 30A 600V AC IP69k NEMA Type 4X
- MPN: HBLDS30NK
- UPC: 783585763019
- PPN: HBL-HBLDS30NK
- UNSPSC: 39121521
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$320.88/ EA
Description
Industrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure, No KO, cULus, NSF, CE, UL 508 / UL 60947-4-1A
Features
- Constructed from corrosion and impact resistant UV stabilized non-metallic material
- Rounded sloped top enclosure supports best practices in hygienic design by shedding dirt and debris
- IP69k and Type 4X,12K water ingress protection and Certified by NSF for hygiene in food processing applications
- Highly visible red handle can be locked in the OFF position as a method of compliance with OSHA Lockout/Tagout requirements
- Product rating are permanently laser-marked and will not wash off
Specifications
Specifications
- Country of Origin
- Poland
- Current / Amperage Rating
- 30 A
- Width
- 5.500 in
- Horsepower - Maximum
- 15
- Industry Standard(s)
- cULus Listed
- Mounting Method
- External fully adjustable feet
- Application
- Heavy Duty Industrial and/or Washdown
- Standard
- cULus Listed
- Weight
- 2.6 lb.
- Dielectric Strength
- Withstands 3000V AC minimum
- Operating Cycles
- 10,000 Cycles Minimum
- Shape
- Rounded Top
- Wire Size
- #14 AWG to #8AWG
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Stainless Steel Screw Mounting
- Base Unit of Measure
- EA
ColorGray
Description - SlangIndustrial Grade, Motor Disconnect, Unfused, 3 Pole, 30A 600V AC, Screw Terminals, IP69k, NEMA Type 4X, 12 Non-Metallic Sloped Top Enclosure, No KO
Height4.12 in
Hub Size3/4"
Ingress ProtectionIP69k, NEMA Type 4X, 12
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current & voltage;Electrical - Dielectric Voltage - Withstands 3000V AC minimum;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94-5VA and V0 Classification;Environmental - Operating Temperature - Max Continuous 75°C,Min Continuous -40°C w/o impact;Environmental - UV Resistance - All materials are UV stabilized;Mechanical - Impact Resistance - In accordance with UL 746C;Mechanical - Mounting - Non-Metallic - External fully adjustable feet;Mechanical - Product Identification - Identification and ratings are part of external label;Mechanical - Terminal Identification - In accordance with UL, CSA and international conventions
Enclosure TypeIP69k and UL Type 4X, 12
TypeDisconnect Switches
General Literature Asset 1 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
Environmental ConditionsIndoor and Outdoor
Operating TemperatureWithout Impact Maximum continuous 75°C and minimum -40 °C
StyleHeavy Duty
Class CodeA16
Harmonization Code8536509065
Sub Class CodeA16A260
SeriesNon-Fused
Carton - SCC-14 Next Lower Level Sub Pack00783585763019
