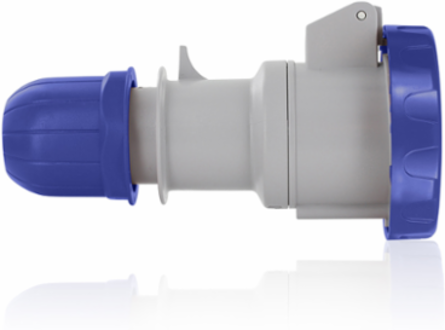

Leviton W316-C9 International Pin & Sleeve Connector 16 Amp 200/250 Volt IP66/67 Blue

International Pin & Sleeve Connector 16 Amp 200/250 Volt IP66/67 Blue
International Pin & Sleeve Connector 16 Amp 200/250 Volt IP66/67 Blue
  • MPN: W316-C9
  • UPC: 078477677599
  • PPN: LEV-W316-C9

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$177.89/ EA

Description

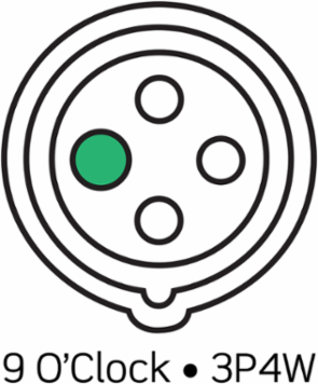

16 Amp, 200-250 Volt, 3P+E (3P, 4W), Clock Position 9, IEC/EN 60309-1 & 60309-2, International Configuration Connector, Industrial Grade, IP66/67, Watertight - BLUE

Specifications

Standards and Certifications

CE
Marked
NOM Certified
Yes
IEC Rating60309-1 and 60309-2
RETIE CertifiedYes

Material Specifications

Contacts
Nickel Plated Brass
HousingHalogen-free engineering polymer

Mechanical Specifications

Cord Grip Range (in)
.315 - .590
Terminal Accom.#16 - #14 AWG

Specifications

Country of Origin
Slovakia
RoHS CompliantTrue

Product Features

Color
Blue
Device Type
Connector
ConfigurationInternational

Environmental Specifications

IK Rating
IK08
Operating Temperature
-25°C to 40°C
IP RatingIP66/IP67

Electrical Specifications

Amperage
16 A
Pole
3
Wire
4
Frequency50/60Hz
Voltage200/250 VAC
