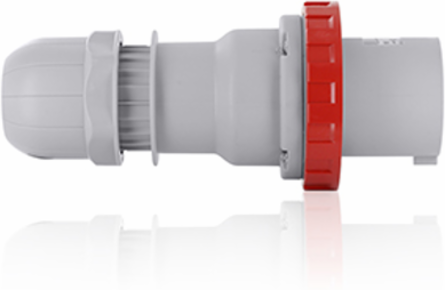

Leviton W463-P11 Industrial Grade International Pin & Sleeve Plug 63 Amp 440-460 Volt IP66/IP67 Red

Industrial Grade International Pin & Sleeve Plug 63 Amp 440-460 Volt IP66/IP67 Red
Industrial Grade International Pin & Sleeve Plug 63 Amp 440-460 Volt IP66/IP67 Red
  • MPN: W463-P11
  • UPC: 078477676721
  • PPN: LEV-W463-P11

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$227.57/ EA

Description

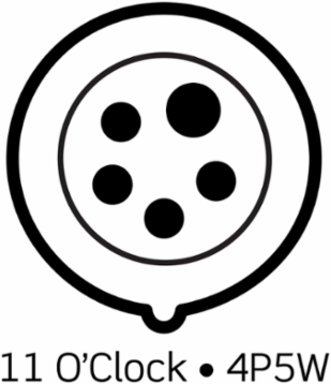

63 Amp, 440-460 Volt, 3P+N+E (4P, 5W), Clock Position 11, IEC/EN 60309-1 & 60309-2, International Configuration Plug, Industrial Grade, IP66/67, Watertight - RED

Specifications

Standards and Certifications

CE
Marked
NOM Certified
Yes
IEC Rating60309-1 and 60309-2
RETIE CertifiedYes

Material Specifications

Contacts
Nickel Plated Brass
HousingHalogen-free engineering polymer

Mechanical Specifications

Cord Grip Range (in)
.669 - 1.22
Terminal Accom.#10 - #6 AWG

Specifications

Country of Origin
Italy
RoHS CompliantTrue

Product Features

Color
Red
Device Type
Plug
ConfigurationInternational

Environmental Specifications

IK Rating
IK08
Operating Temperature
-25°C to 40°C
IP RatingIP66/IP67

Electrical Specifications

Amperage
63 A
Pole
4
Wire
5
Frequency60Hz
Voltage440-460 VAC
