Blackburn

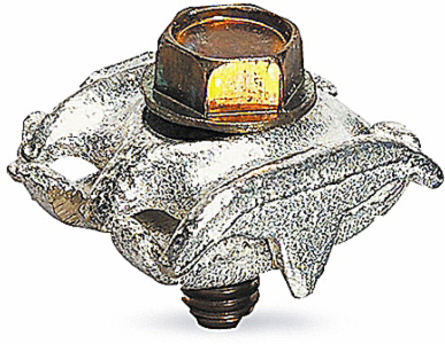

Blackburn K1 Parallel-Groove Jumper Clamp Connector 7.25x6.35x5.1 Inch, 35kV, Copper Alloy

Parallel-Groove Jumper Clamp Connector 7.25x6.35x5.1 Inch, 35kV, Copper Alloy
  • MPN: K1
  • UPC: 783786300341
  • PPN: T-B-K1

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$22.81/ EA

Description

Copper Type K - Jumper Clamp for Wire Range Plated Groove #6 - 1/0 ACSR, Copper Groove #8 Solid - 2/0 Stranded, Clamp Plated in one groove.

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121408 Mechanical connectors
Brand Name
Blackburn
Special Features
Silicon-Bronze Hex-Head Washer Bolt Ensures a Super-Secure Fitting. Parallel-Groove Design Eliminates the Need to Remove the Bolt for Installation.
Connection
Mechanical
Material
Copper Alloy
Voltage Rating
35kV
Conductor Range (Main/Primary)
Copper Groove #8 Solid - 2.0 Stranded
IGCC4541 Mechanical connectors
TypeParallel-Groove Connector - Jumper Clamp
ApplicationFor use with Aluminum, Amerductor or Galvanized Steel Strand to Copper or Copper-Bonded Steel Wires.
Number Of Conductors2
FinishTin-Plated
InsulationNo
Conductor Range (Tap/Secondary)ACSR #6 - 1/0

Packaging

Inner Quantity
1
Outer Quantity
100
Weight Uom
12.5 lbs. per 100
Inner Dimensions (inches)5.87x4.5x6.87
Outer Dimensions (inches)7.25x6.35x5.1
