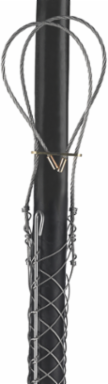

Hubbell Wiring Device-Kellems 02203066 Support Grip Universal Eye Split Mesh Tin-Coated Bronze 0.75-0.99 Inch

Support Grip Universal Eye Split Mesh Tin-Coated Bronze 0.75-0.99 Inch
Support Grip Universal Eye Split Mesh Tin-Coated Bronze 0.75-0.99 Inch
  • MPN: 02203066
  • UPC: 783585303451
  • PPN: HBL-02203066
  • UNSPSC: 39121719

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$179.60/ EA

Description

Support Grips, Universal Eye, Split Mesh, Rod Closing, Tin-Coated Bronze, 0.75-0.99"

Features

  • Universal eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Split Mesh- Rod Closing

Specifications

Specifications

Country of Origin
United States
Cable Diameter Range
0.75 in-0.99 in
Industry Standard(s)
CSA Certified
Application
Universal Eye
Special Features
Split Mesh- Rod Closing
Type
Universal Eye
General Literature Asset 2 Display Text
PULP & PAPER SOLUTIONS
Style
Split Mesh, Rod Closing
Description - Invoice
UNI EYE, SUP GRIP, .75-.99"; GALV, ROD
Harmonization Code
7419805050
MSDS Flag
No
Material - Mounting Hardware
Screw Hook or Beam Clamp
Material
Bronze, Tin Coated
Base Unit of Measure
EA
Carton - Gross Weight per Pack
3.500 lb.
Carton - Pack Description
Carton
Carton - Total Units
10 EA
Lowest Level UOM
Each
Approx Breaking Strength1,020 lb.
Width3.000 in
PerformanceMechanical - Approximate Breaking Strength - 1,020 (4,537);Mechanical - Working Load - 102 (453.7) Lbs. (N)
Cable Size.75"-.99" (1.90-2.51)
StandardCSA Certified
General Literature Asset 1 Display TextPulp & Paper Solutions
General Literature Asset 3 Display TextFOOD & BEVERAGE SOLUTIONS
Class CodeA52
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA52A480
ConstructionWoven
SeriesStandard Duty Series
BOX SIZE12.875x32.625x18.625 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585303451
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
Yes
