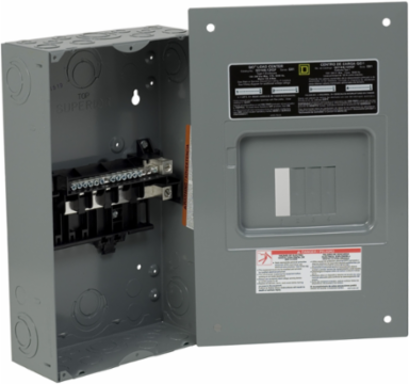

Schneider Electric QO148L125GF Load center, QO, 1 phase, 4 spaces, 8 circuits, 125A fixed main lugs, NEMA1, gnd bar, flush cover
Schneider Electric QO148L125GF Load center, QO, 1 phase, 4 spaces, 8 circuits, 125A fixed main lugs, NEMA1, gnd bar, flush cover
- MPN: QO148L125GF
- UPC: 785901484387
- PPN: SCH-QO148L125GF
- UNSPSC: 39121101
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$156.38/ EA
Description
QO Load Centers offer premium features by allowing QO breakers, ground fault interrupters, arc fault interrupters, and surge arresters to be installed inside. QO Load Centers are designed for residential and industrial use to protect electrical systems, equipment, and people. They are available in both traditional and plug on neutral configurations. There is 3 types of mains available. There is main circuit breaker, main lugs, and generator panel. Single and three phase options are available. The bus bars are tin plated copper and are shielded. Indoor and outdoors enclosures are an option. QO Load Centers enable the use of a full complement of accessories. This 1 phase load center has 4 spaces and 8 circuits. This system provides 125A fixed main lugs in a NEMA 1 enclosure. It also includes a ground bar, flush cover, and is UL rated. QO load center is UL Listed.
Features
- Provides superior performance and durability
- Straight in wiring saves wire, labor, and time
- Faster installation using PoN breakers that connect directly
- 50% more terminations for clutter-free wiring
- Complies with UL 67 listed, CSA, and IEC standards
- Designed to satisfy individual requirements
- Compatible with Square D QO Plug-on Neutral Whole Home SPD
- UL rated
- Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all
Specifications
Conformance Attributes
- Product Certifications
- UL Listed
Complementary Attributes
- Line Rated Current
- 125 A
Important Information Attributes
- Persona Type Ids
- EU, LC
- AWG Gauge
- AWG 12...AWG 2/0 aluminium, AWG 14...AWG 2/0 copper
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.4 kg CO2 eq., 0.4129566521
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 22 kg CO2 eq., 22.1110430981
- Local Data Status
- Publishable
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant
- China ROHS In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- H And D Domain
- Safety
- H And D Enrichment Assignment
- no
- H And D Enrichment Class 3
- Load centers (equipped)
- Cover Type
- flush cover
- Electrical Connection
- lugs
- Energy Efficiency Optimized
- False
- Material
- tin plated copper: busbar
- Phase
- 1 phase 3 wires
- Product Or Component Type
- Load Center
- Returnability
- Yes
- Surface Finish
- baked enamel Gray
- Tightening Torque
- main lugs 50 lb.in, AWG 6...AWG 2/0, aluminium/copper
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Medium Desc
- Load center, QO, 1 phase, 4 spaces, 8 circuits, 125A fixed main lugs, NEMA1, gnd bar, flush cover
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1000mm x362mm x 95mm, that is certified for UL 67.
- Energy Model Manufacturing A1 A3 2
- Energy model used: Tlaxcala Mexico
- Energy Model Use B6 2
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, Contractor
Carbon Footprint Of The Distribution Phase A41.494131168, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0178870581, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-11-13
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Market SegmentationResidential
H And D SubrangeRESI
H And D Enrichment FunctionENCLOSURES
H And D Enrichment Class 4single-phase main lug only indoor load center
Device Compositiongrounding bar (ordered separately)
Enclosure Materialwelded sheet steel
Load Center TypeFixed Mains (lugs)
Package Weight Lbs4.463 kg
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Short Circuit Current10 kA
Sustainable PackagingNo
Total Lifecycle Carbon Footprint24 kg CO2 eq.
Ue Rated Operational Voltage2120/240 V AC
Stocking FlagN
Pep CodeENVPEP2212003EN
Pep Verification Date2025-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model End Of Life C1 C4 2Electricity mix; AC; consumption mix, at consumer; 120V; US
Ue Rated Operational Voltage5120/240 V AC
Environment Attributes Main
- Take Back
- No, Nej
- Ambient Air Temperature For Operation
- -5 °C, 40 °C
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2212003EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2212003EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent external review
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
EU ROHS DirectiveCompliant , Compliant
Reach Free SHVCYes
Toxic Heavy Metal FreeYes
Carbon Footprint24.0360179763
Nema Degree Of ProtectionNEMA 1 indoor enclosure
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase 3 wires
- Range Of Product
- QO
Product Or Component TypeLoad Center
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 95 mm
