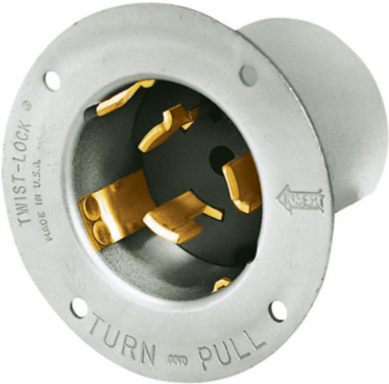

Bryant CS6375A Flanged Inlet Locking Device, 50A 125/250V, 3-Pole, 4-Wire, Metallic Casing, 2.77 Inch x 3.50 Inch x 3.50 Inch
Bryant CS6375A Flanged Inlet Locking Device, 50A 125/250V, 3-Pole, 4-Wire, Metallic Casing, 2.77 Inch x 3.50 Inch x 3.50 Inch
- MPN: CS6375A
- UPC: 781786253117
- PPN: HBL-CS6375A
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$292.74/ EA
Description
Locking Devices, Industrial, Flanged Inlet, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Steel
Features
- Metallic flanged casing provides maximum strength and protection
- Thermoset interior provides superior heat resistance
- Metallic Flange
Specifications
Specifications
- Country of Origin
- United States
- Height
- 3.50 in
- Amperage Rating
- 50 A
- Color
- Metallic
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 3-Pole
- Size
- 2.77 in x 3.50 in x 3.50 in
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Voltage Rating
- 125/250 VAC
- Voltage Rating Description
- 125/250V AC
- Connectivity
- Pressure Terminal Screws
- Number Of Poles
- 3-Pole
- Style
- Extra Heavy Duty
- Description - Invoice
- LKG FLG-INLT, 3P4W, 50A 125/250V
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Composite
- BOX SIZE
- 5.200x20.400x9.800 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786253117
- Each - Pack Description
- Each
Dimensions2.77 in x 3.50 in x 3.50 in
Length2.77 in
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 3000V Minimum in
InsulationInsulated Body
Number of Wires4-Wire
Special FeaturesMetallic Flange
TypeFlanged Inlet
Wire Size#18 AWG to #8 AWG
Width3.50 in
Display SizeStandard Sized Product
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A171
Current Rating50 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack9.15 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
