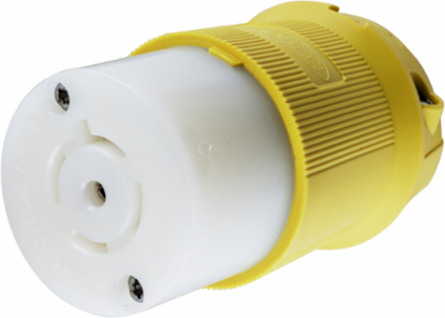

Hubbell Wiring Device-Kellems HBL25CM13 Twist-Lock® Corrosion Resistant Connector 20A 4-Pole 5-Wire Grounding NEMA L21-20R

Twist-Lock® Corrosion Resistant Connector 20A 4-Pole 5-Wire Grounding NEMA L21-20R
  • MPN: HBL25CM13
  • UPC: 783585038728
  • PPN: HBL-HBL25CM13
  • UNSPSC: 39121421

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$199.74/ EA

Description

Twist-Lock® Corrosion Resistant Insulgrip® Connector, 20A, 3 Phase Y 120/208V AC, 4-Pole, 5 Wire Grounding, NEMA L21-20R Nylon

Features

  • Ribbed nylon housing provides a secure grip and impact and chemical resistance
  • Superior cord grip design protects terminations from excess strain
  • Integral dust shield protects wiring chamber from dust or contaminants
  • Standard Product

Specifications

Amperage
20 A
Phase
3 Phase WYE
Number of Wires
5-Wire Grounding
Dielectric Strength
2,000 V minimum
Size
3.86 in x 2.33 in x 2.33 in
Width
2.33 in
Weight
0.40 lb.
Connectivity
Screw Terminals
Contacts Material
Nickel Plated Brass
Terminal Clamp Material
Cold rolled steel - nickel plated
Terminal Retainer Material
Clear polycarbonate
Moisture Resistance
IP20
EU RoHS Indicator
Yes
Color
Yellow
Voltage120/208 VAC
Number of Poles4-Pole
NEMA RatingL21-20R
Operating Temperature-40B0C to 75B0C
Length3.86 in
Height2.33 in
Cord Diameter0.350-1.150 in (9-29 mm)
MaterialNylon
Terminal Screws#10-32 Bronze
Assembly Screws MaterialSteel - nickel plated
FlammabilityHB or better per UL 94
ListingsUL 498; Fed.Spec. W-C-596; CSA C22.2 No.42
Country of OriginUS
