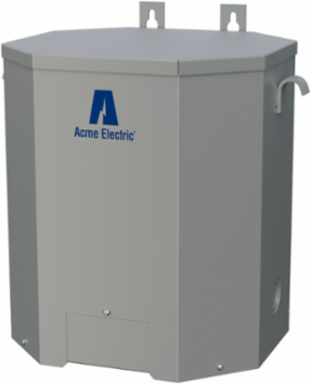

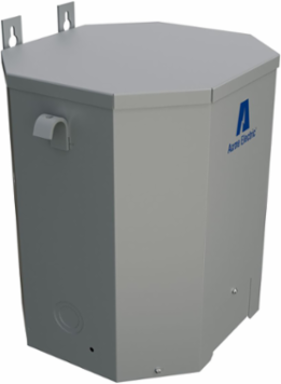

Acme Electric TF252796S Low Voltage Single Phase Distribution Transformer 15kVA 120/240V
Acme Electric TF252796S Low Voltage Single Phase Distribution Transformer 15kVA 120/240V
- MPN: TF252796S
- UPC: 047503190654
- PPN: HBL-TF252796S
- UNSPSC: 39121001
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Low Voltage Distribution Transformer - Single Phase, 190/200/208/220 X 380/400/416/440 - 120/240V, 15kVA
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Specifications
Specifications
- Country of Origin
- Mexico
- Dimensions
- 11.59 in x 14.12 in x 16.94 in
- Max Temperature Rise
- 115 Degrees Celsius
- Product Type
- Dry Type Distribution Transformer
- Frequency Rating
- 50/60 Hz
- Length
- 11.59 in
- Primary Voltage
- 190/200/208/220 X 380/400/416/440 V
- UL Insulation Class
- 180°C
- Weight
- 170 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Sub Class Code
- D10D100
- Winding Material
- AL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503190654
- Pallet Length
- 40.000 in
- Pallet Width
- 40.000 in
CSA StandardC22.2 No. 47
kVA15.0
Product CategoryDry Type Distribution Transformer
Secondary Voltage120/240 V
Height16.94 in
MountingWall
Width14.12 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorS - Shelf Stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE19.000x13.000x15.000 (in)
Pallet Height24.000 in
Pallet Weight1200.000 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
CE CompliantCE Marked
