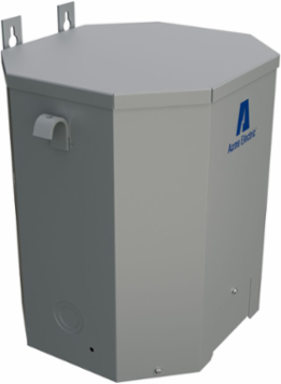

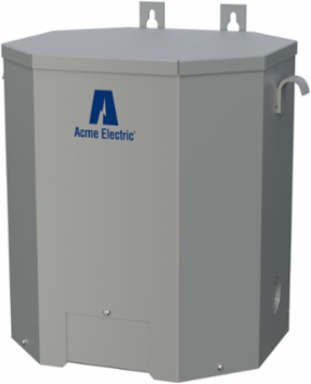

Acme Electric T2536161S Low Voltage Distribution Transformer 10kVA, 600V/120-240V, Wall Mount, NEMA 3R
Acme Electric T2536161S Low Voltage Distribution Transformer 10kVA, 600V/120-240V, Wall Mount, NEMA 3R
- MPN: T2536161S
- UPC: 047503734506
- PPN: HBL-T2536161S
- UNSPSC: 39121001
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3365.71/ EA
Description
Low Voltage Distribution Transformer - Single Phase, 600 - 120V/240V, 10kVA
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Specifications
Specifications
- Country of Origin
- Mexico
- CSA Standard
- C22.2 No. 47
- kVA
- 10.0
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 120/240 V
- Frequency Rating
- 60 Hz
- Length
- 10.84 in
- Primary Voltage
- 600 V
- UL Insulation Class
- 180°C
- Weight
- 125 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Sub Class Code
- D10D100
- Winding Material
- AL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503734506
- Pallet Length
- 40.000 in
- Pallet Width
- 40.000 in
BNFC Taps2
Dimensions10.84 in x 13.5 in x 15.19 in
Max Temperature Rise115 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps5%
Height15.19 in
MountingWall
Width13.5 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorN - Non-stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE18.000x13.000x15.000 (in)
Pallet Height23.000 in
Pallet Weight795.000 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
