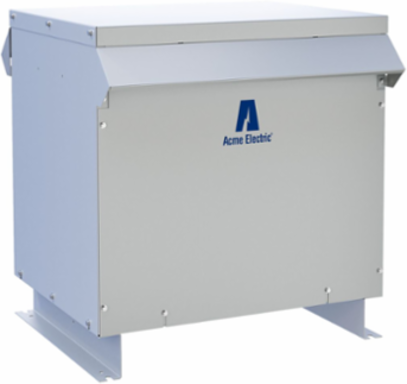

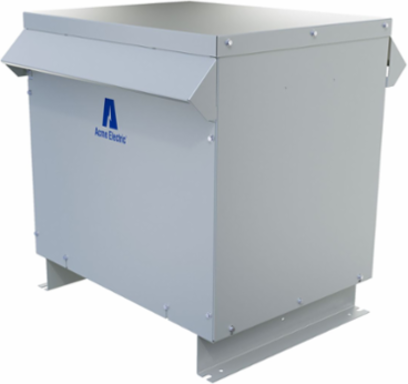

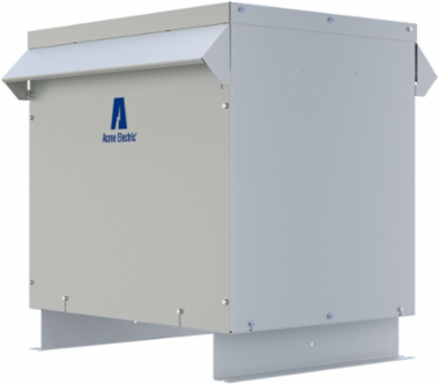

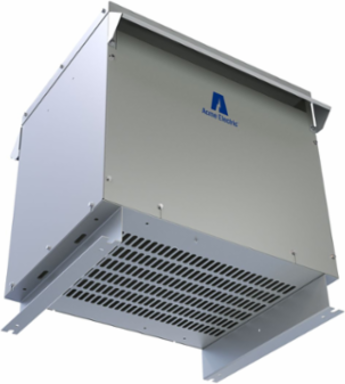

Acme Electric T3112K0044B Low Voltage Three Phase Distribution Transformer 112.5 kVA 240V/208Y-120V
Acme Electric T3112K0044B Low Voltage Three Phase Distribution Transformer 112.5 kVA 240V/208Y-120V
- MPN: T3112K0044B
- UPC: 047503093306
- PPN: HBL-T3112K0044B
- UNSPSC: 39121001
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Low Voltage Distribution Transformer - Three Phase, 240Δ - 208Y/120V, 112.5kVA
Features
- Quiet operation with sound levels below NEMA standards
Specifications
Specifications
- Country of Origin
- Mexico
- BNFC Taps
- 2
- Dept of Energy Regulation
- Meets or exceed U.S. DOE 10 CFR Part 431
- kVA
- 112.5
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 208Y/120 V
- Efficiency
- 98.74%
- Height
- 35.47 in
- Mounting
- Floor
- Width
- 31.9 in
- UL Standard
- UL 1561
- Material type
- ZFIN
- Nema Rating
- NEMA 3R
- Class Code
- D10
- Harmonization Code
- 8504330040
- Sub Class Code
- D10D100
- Construction
- Ventilated
- BOX SIZE
- 49.000x45.000x43.000 (in)
- Pallet Height
- 49.000 in
- Pallet Weight
- 832.000 lb.
ANFC Taps2
CSA StandardC22.2 No. 47
Dimensions26.88 in x 31.9 in x 35.47 in
Max Temperature Rise150 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps2.5%
Frequency Rating60 Hz
Length26.88 in
Primary Voltage240D V
UL Insulation Class220°C
Weight696 lb.
Mounting TypeFloor
ARRA CompliantContact Manufacturer
Freight Class Code06342001
Image Actual Or RepresentativeA
Winding MaterialAL
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503093306
Pallet Length45.000 in
Pallet Width43.000 in
