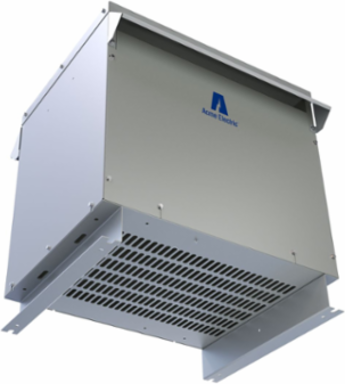

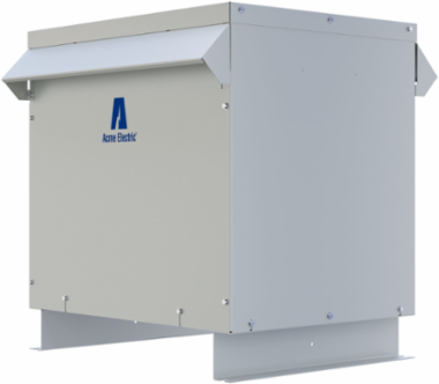

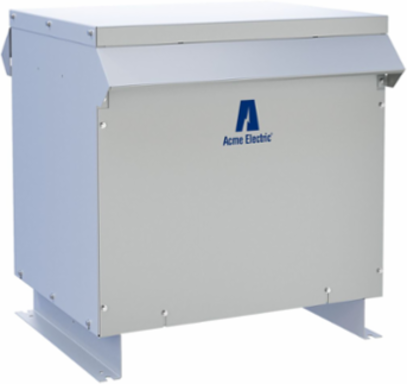

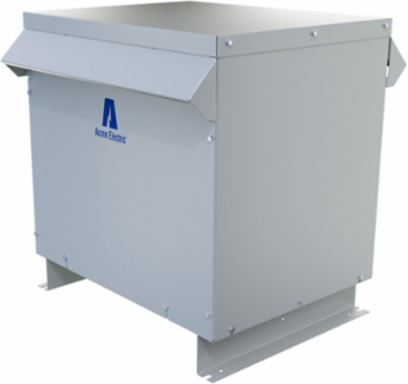

Acme Electric T3045K0053B Low Voltage Distribution Transformer 3-Phase 45 kVA 480Y/277V
Acme Electric T3045K0053B Low Voltage Distribution Transformer 3-Phase 45 kVA 480Y/277V
- MPN: T3045K0053B
- UPC: 047503093061
- PPN: HBL-T3045K0053B
- UNSPSC: 39121001
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Low Voltage Distribution Transformer - Three Phase, 480Δ - 480Y/277V, 45kVA
Features
- Quiet operation with sound levels below NEMA standards
Specifications
Specifications
- Country of Origin
- Mexico
- BNFC Taps
- 4
- Dept of Energy Regulation
- Meets or exceed U.S. DOE 10 CFR Part 431
- kVA
- 45.0
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 480Y/277 V
- Efficiency
- 98.40%
- Height
- 25.5 in
- Mounting
- Floor
- Width
- 24.39 in
- UL Standard
- UL 1561
- Material type
- ZFIN
- Nema Rating
- NEMA 3R
- Class Code
- D10
- Harmonization Code
- 8504330020
- Sub Class Code
- D10D100
- Construction
- Ventilated
- BOX SIZE
- 37.000x38.000x38.000 (in)
- Pallet Height
- 37.000 in
- Pallet Weight
- 451.000 lb.
ANFC Taps2
CSA StandardC22.2 No. 47
Dimensions19.37 in x 24.39 in x 25.5 in
Max Temperature Rise150 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps2.5%
Frequency Rating60 Hz
Length19.37 in
Primary Voltage480D V
UL Insulation Class220°C
Weight400 lb.
Mounting TypeFloor
ARRA CompliantContact Manufacturer
Freight Class Code06342001
Image Actual Or RepresentativeA
Winding MaterialAL
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503093061
Pallet Length38.000 in
Pallet Width38.000 in
