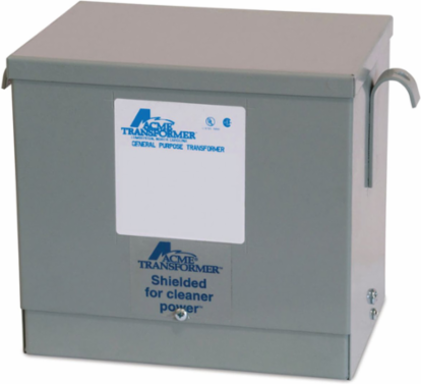

Acme Electric T2A795171S Low Voltage Distribution Transformer 600V 480Y/277V 6kVA 14.17 Inch Width
Acme Electric T2A795171S Low Voltage Distribution Transformer 600V 480Y/277V 6kVA 14.17 Inch Width
- MPN: T2A795171S
- UPC: 047503420522
- PPN: HBL-T2A795171S
- UNSPSC: 39121001
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3391.88/ EA
Description
Low Voltage Distribution Transformer - Three Phase, 600Δ - 480Y/277V, 6kVA
Features
- Quiet operation with sound levels below NEMA standards
- Electrostatic shield for enhanced protection
Specifications
Specifications
- Country of Origin
- Mexico
- CSA Standard
- C22.2 No. 47
- kVA
- 6.0
- Product Category
- Dry Type Distribution Transformer
- Secondary Voltage
- 480Y/277 V
- Frequency Rating
- 60 Hz
- Length
- 8.82 in
- Primary Voltage
- 600D V
- UL Insulation Class
- 180°C
- Weight
- 140 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- R
- Sub Class Code
- D10D100
- Winding Material
- AL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503420522
- Pallet Length
- 40.000 in
- Pallet Width
- 40.000 in
BNFC Taps2
Dimensions8.82 in x 14.17 in x 11.83 in
Max Temperature Rise115 Degrees Celsius
Product TypeDry Type Distribution Transformer
Taps % Steps5.0%
Height11.83 in
MountingWall
Width14.17 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorS - Shelf Stock
Electrostatic ShieldShielded
ConstructionEncapsulated
BOX SIZE14.000x11.000x13.000 (in)
Pallet Height19.000 in
Pallet Weight679.000 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
