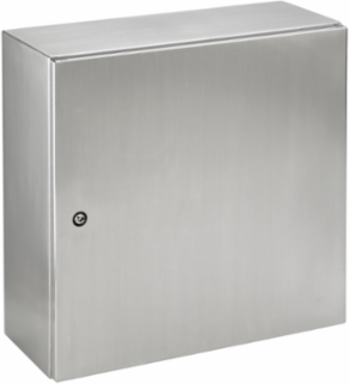

nVent Hoffman M300300210GSS GL66 Wallmount Enclosure, 300x300x210mm, Stainless Steel, NEMA 12 IP66
nVent Hoffman M300300210GSS GL66 Wallmount Enclosure, 300x300x210mm, Stainless Steel, NEMA 12 IP66
- MPN: M300300210GSS
- UPC: 783510267834
- PPN: HOF-M300300210GSS
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$1519.54/ EA
Description
This GL66 stainless steel wallmount uses quarter turn latching with 3mm double-bit insert. This GL66 Wallmount 1/4 Turn Latch Type 4X, M300300210GSS item measures 300x300x210mm with a material of SS 304, Brushed.
Features
- Removable hinges and double-bit latch insert
- Dimensions in millimeters
- Minimum-width body flange provides maximum body opening
- Pre-cut gland plate openings in the bottom of the enclosure with a seal to ensure protection
- External formed 90 degree body flange
- Door opens 210 degrees
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Type 316 stainless steel hinge pins
- Corner-formed doors are easily removed by pulling clip-style hinge pins
- Quarter-turn latches furnished with 3mm double-bit insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Grounding stud on the body
- Full-sized galvanized steel back panel included
- Bonding provision on the door
- Furnished hardware kit includes: gasketed gland plates and hardware, grounding hardware and sealing washers for wallmounting holes
- Installation instructions
- Three-point latching on enclosures 1000 mm and taller
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 300
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #3
- NEMA Rating
- 12 Indoor, dust-resistant
- Body Thickness
- 1.59
- IP Rating
- IP66
- Size
- 300x300x210mm
Height (H)300
Depth (D)210
Product FamilyGL66
Panel Size (D x E)10.04 x 10.04
Weight16.7
Door Thickness1.59
MaterialStainless Steel
