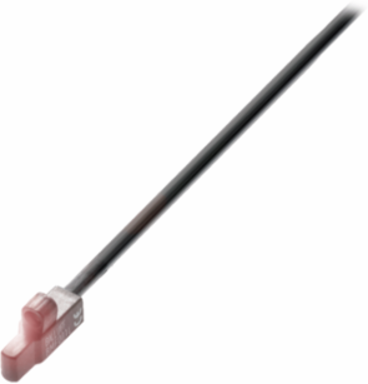

Balluff BMF 103K-PS-C-2A-PU-03 Magnetic field sensors for C-slot BMF 103K-PS-C-2A-PU-03

Magnetic field sensors for C-slot BMF 103K-PS-C-2A-PU-03
  • MPN: BMF 103K-PS-C-2A-PU-03
  • PPN: BAL-BMF001F

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$114.51/ EA

Description

Our magnetic cylinder sensors for C-slots distinguish themselves with their firm grip. Features: can be mounted flush – suitable for space-critical applications; can be installed from above – also fit where the slot ends are closed; contact-free detection of the piston position through cylinder walls; can be used for cylinders and grippers with strong or weak magnets. Extremely short configurations are available.

Specifications

Specifications

Dimension
9 x 4.8 x 16 mm
Application
Optimized response path especially suited for short-stroke cylinders.
Housing material
PBT
Switching frequency
30000 Hz
Ambient temperature
-25-85 °C
Approval/Conformity
cULus, CE, WEEE
CablePUR, 3.00 m
MountingMounting bracket BMF 103-HW*
Switching outputPNP Normally open (NO)
Operating voltage Ub10-30 VDC
IP ratingIP67
