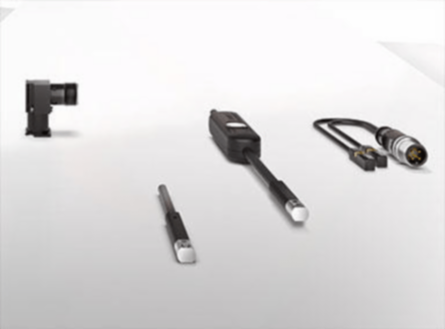

Balluff BMF 103K-PS-C-2A-SA2-S49-00,7 Magnetic Field Sensor, 9 x 4.8 x 16 mm, IP67, 7000 Hz
Balluff BMF 103K-PS-C-2A-SA2-S49-00,7 Magnetic Field Sensor, 9 x 4.8 x 16 mm, IP67, 7000 Hz
- MPN: BMF 103K-PS-C-2A-SA2-S49-00,7
- PPN: BAL-BMF00M8
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$196.43/ EA
Description
Engineered for precision and reliability, this magnetic field sensor from Balluff is an ideal choice for applications requiring optimized response paths, particularly in short-stroke cylinders. With a compact design measuring just 9 x 4.8 x 16 mm, it boasts a robust IP67 rating, ensuring protection against dust and water ingress, making it suitable for demanding environments. The sensor operates with a high switching frequency of 7000 Hz and features a PNP normally open output, accommodating a wide range of operational needs while maintaining a temperature tolerance from -25 to 85 °C. Its durable PBT housing and 0.7 m PUR cable further enhance its reliability, making it a versatile solution for various industrial automation applications.
Specifications
Specifications
- Dimension
- 9 x 4.8 x 16 mm
- Cable
- PUR, 0.7 m
- Housing material
- PBT
- Switching frequency
- 7000 Hz
- Ambient temperature
- -25-85 °C
- Approval/Conformity
- cULus, CE, WEEE
ConnectionM8x1-Male, 3-pin
ApplicationOptimized response path especially suited for short-stroke cylinders.
Switching outputPNP Normally open (NO)
Operating voltage Ub10-30 VDC
IP ratingIP67
