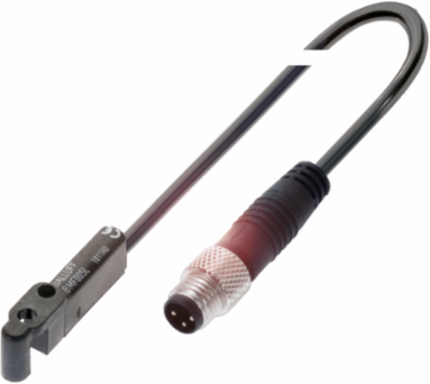

Balluff BMF 305K-PS-C-2-SA2-S49-02 Magnetic field sensors for round cylinders BMF 305K-PS-C-2-SA2-S49-02

Magnetic field sensors for round cylinders BMF 305K-PS-C-2-SA2-S49-02
  • MPN: BMF 305K-PS-C-2-SA2-S49-02
  • PPN: BAL-BMF005U

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$166.93/ EA

Description

Our cylinder sensors for round cylinders are integrated into different applications with the appropriate hose clamp and mounting bracket. The mounting bracket concept is suitable for most types of cylinders up to 80 mm piston diameter. Features: contact-free detection of the piston position through the cylinder wall, precise switching point, wear-free, resistant to dirt, secure grip, fast installation.

Specifications

Specifications

Dimension
33.5 x 5 x 10.5 mm
Cable
PUR, 2 m
Switching output
PNP Normally open (NO)
Operating voltage Ub
10-30 VDC
IP rating
IP67
ConnectionM8x1-Male, 3-pin
Housing materialLCP
Switching frequency10000 Hz
Ambient temperature-25-85 °C
Approval/ConformityCE, cULus, WEEE
