Balluff

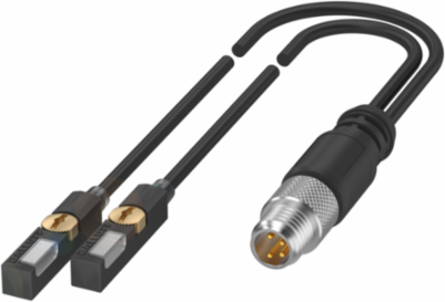

Balluff BMF 235K-PS-C-2A-SA95-S75-00,3 S75-00 Magnetic Field Sensor, 23.5x5x5.5 mm, PNP NO, IP67

S75-00 Magnetic Field Sensor, 23.5x5x5.5 mm, PNP NO, IP67
  • MPN: BMF 235K-PS-C-2A-SA95-S75-00,3
  • PPN: BAL-BMF00CA

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$96.57/ EA

Description

S75-00 Magnetic Field Sensor, 23.5x5x5.5 mm, PNP NO, IP67

Specifications

Specifications

Country of Origin
Hungary
Principle of operation
Magnetic field sensor
Cable
PUR, 0.3 m
Fastening detail
can be installed in T-slot from above
Switching output
PNP Normally open (NO)
Operating voltage Ub
10...30 VDC
IP rating per IEC 60529
IP67
Dimension23.5 x 5 x 5.5 mm
ConnectionM8x1-Male, 4-pin
ApplicationPneumatic cylinder with T-slot. For dimensions, see sketch in product view.
Housing materialPA 12
Switching frequency3000 Hz
Ambient temperature-25...85 °C
Approval/ConformityCE; UKCA; cULus; WEEE
