Balluff BMF 305K-PO-C-2-S49-00,2 Magnetic field sensors for tie rod cylinders BMF 305K-PO-C-2-S49-00,2

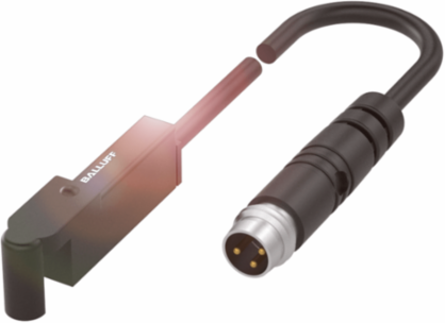

Magnetic field sensors for tie rod cylinders BMF 305K-PO-C-2-S49-00,2
  • MPN: BMF 305K-PO-C-2-S49-00,2
  • PPN: BAL-BMF0054

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$115.43/ EA

Description

Our cylinder sensors for pull rod cylinders can be integrated into many applications. They are mounted with mounting brackets on cylinders with tie rods and DUO rails. The concept is suitable for the most common types of cylinders with any piston diameter.Features: contact-free detection of the piston position, tie rod Ø up to 17 mm, reliable switching behavior, wear-free,resistant to dirt, secure grip, easy installation.

Specifications

Specifications

Dimension
33.5 x 5 x 10.5 mm
Cable
PUR, 0.20 m
Switching output
PNP Normally closed (NC)
Operating voltage Ub
10-30 VDC
IP rating
IP67
ConnectionM8x1-Male, 3-pin
Housing materialLCP
Switching frequency10000 Hz
Ambient temperature-25-85 °C
Approval/ConformityCE, cULus, WEEE
