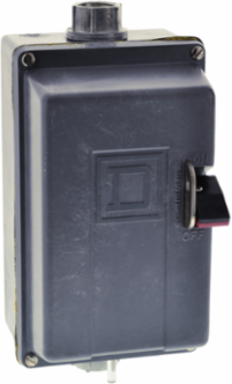

Schneider Electric 2510MCW1 Manual Motor Starter NEMA M1 600VAC 2 Pole 3HP 230VAC 1 Phase NEMA 4/4X

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This NEMA Size M-1 two pole starter is rated for 2 HP at 115 VAC and 3 HP at 230 VAC single phase. A melting alloy thermal unit is used with this manual starter to sense over current conditions. This thermal unit is ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 8 AWG copper wire. This starter has no pilot light indicator. A NEMA 4/4X watertight, dusttight and corrosion resistant glass polyester enclosure is used to protect this integral horsepower manual starter. This enclosure has one 0.75 inch conduit entry on the bottom and one on the top. Enclosure is 12.13 inches tall, 6.50 inches wide and 6.41 inches deep. A toggle handle is used to turn the manual switch on and off. The toggle handle can be padlocked in the off or stop position. 2510M integral horsepower starters are UL listed and CSA certified.
