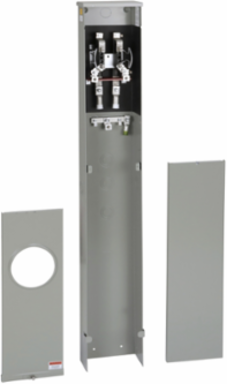

Schneider Electric 1006388 200 Amp Ringless Meter Socket, 600 Volt, 4 Jaws NEMA 3R, Steel
Schneider Electric 1006388 200 Amp Ringless Meter Socket, 600 Volt, 4 Jaws NEMA 3R, Steel
- MPN: 1006388
- UPC: 785901232018
- PPN: SCH-1006388
- UNSPSC: 39121102
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1783.09/ EA
Description
Square D individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. With 200 A, 600 V, 1 phase, 4 jaws ringless socket your product can provide 10 kA RMS short circuit rating. These units are supplied with a bonded neutral to the NEMA 3R enclosure. Meter sockets are UL Listed. This meter no bypass allowing for continued service during meter maintenance or replacement.
Features
- Type T units are designed for the global market and are the best choice when size and cost are of concern
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, ANSI
Complementary Attributes
- Meter Socket Rated Current
- 200 A
Important Information Attributes
- Persona Type Ids
- LC, SC
- AWG Gauge
- AWG 6...250 kcmil aluminium/copper)line side, AWG 6...250 kcmil aluminium/copper)service ground
- Local Publishable Date
- 2025-11-13
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- H And D Domain
- Safety
- H And D Enrichment Assignment
- no
- Electrical Connection
- lugs 0.5" hex
- Energy Efficiency Optimized
- False
- Meter Socket Type
- ringless
- Package Weight Lbs
- 19.799 kg
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- No
- Ue Rated Operational Voltage2
- 600 V AC
- Stocking Flag
- N
- Pep Code
- ENVPEP2509019EN
- Ue Rated Operational Voltage5
- 600 V AC
Persona Type NamesContractor, Electrician
Local Data StatusPublishable
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeNo
Without Single Use PlasticNo
Return IndicatorY
Function OptionStandard
Market SegmentationResidential
H And D SubrangeRESI
H And D Enrichment FunctionENCLOSURES
Enclosure Materialsteel
Hub TypeA ACP closing plate
Number Of Jaws4 without jaw release
Phase1 phase
Product Or Component TypeMeter Socket
Service Feed LocationUG
Wiring Configuration3-wire
Medium DescMeter socket, 200 A, 600 V, 1 phase, ringless, 4 jaws w/o release, no bypass, NEMA 3R, steel
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Recycled Metal Content At Cr Level
- 0 %
- Environmental Disclosure
- ENVPEP2509019EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
China ROHS RegulationProduct out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
ROHS Exemption InformationYes
Mercury FreeYes
Nema Degree Of ProtectionNEMA 3R
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2509019EN
General Attributes
- Phase
- 1 phase
Product Or Component TypeMeter Socket
Output Attributes
- Bypass Type
- no bypass
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
