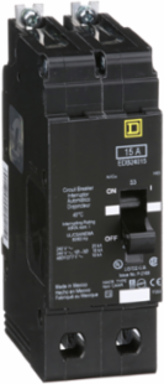

Schneider Electric EDB24015 Mini Circuit Breaker 15A, 2 Pole, 480Y/277 VAC, Bolt-On, 25 kA Max
Schneider Electric EDB24015 Mini Circuit Breaker 15A, 2 Pole, 480Y/277 VAC, Bolt-On, 25 kA Max
- MPN: EDB24015
- UPC: 785901879008
- PPN: SCH-EDB24015
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$752.88/ EA
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 15A, 2 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 270A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.
Specifications
Complementary
- Height
- 5.66 in
- Tightening Torque
- 3.4-3.4 N.m 2.5-16 mm² AWG 14...AWG 6)
- Product Destination
- NF panelboard
- Number Of Spaces Required
- 2
- Net Weight
- 3 lb(US)
- Mounting Mode
- bolt-on
- Protection Type
- overload || short-circuit
- Awg Gauge
- AWG 12...AWG 6 aluminum || AWG 14...AWG 6 copper
- Depth
- 4.05 in
- Trip Unit Technology
- thermal-magnetic
- [Ue] Rated Operational Voltage
- 480Y/277 V AC
Holding Current270 A
Breaking Capacity CodeD
Electrical Connectionlugs aluminum
Number Of Spaces2
Circuit Breaker ApplicationHACR rated || HID rated
[In] Rated Current15 A
Local Signallingtrip indicator
Width1.96 in
Breaking Capacity18 kA 277 V AC || 25 kA 240 V AC || 18 kA 480Y/277 V AC || 25 kA 120 V AC || 25 kA 120/240 V AC
Number Of Poles2
Specifications
- Module Type
- E-Frame
- Trip Unit Rating
- 875-875 A
- Device Short Name
- EDB
Range Of Product125 A Frame EDB-EGB-EJB
Product Or Component Typeminiature circuit-breaker
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Environment
- Product Certifications
- cULus
Ambient Air Temperature For Operation40 °C
