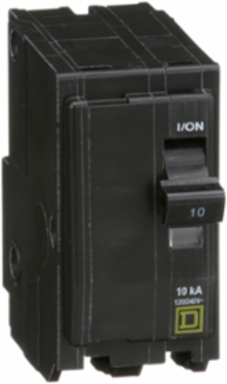

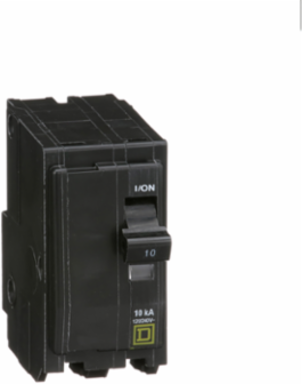

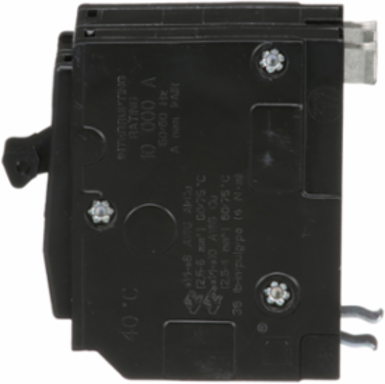

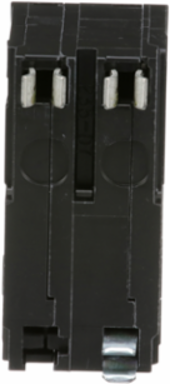

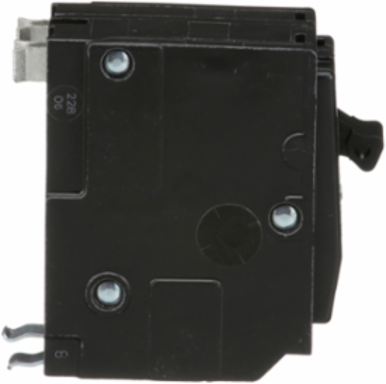

Schneider Electric QO210 Miniature Circuit Breaker, 10A, 2 Pole, 120/240VAC, 10kA Breaking Capacity

Miniature Circuit Breaker, 10A, 2 Pole, 120/240VAC, 10kA Breaking Capacity - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/04f88c109450bebae03d3cff2c1b82029b85c973-medium.png

Miniature Circuit Breaker, 10A, 2 Pole, 120/240VAC, 10kA Breaking Capacity

Schneider Electric QO210 Miniature Circuit Breaker, 10A, 2 Pole, 120/240VAC, 10kA Breaking Capacity

MPN: QO210
UPC: 785901205609
PPN: SCH-QO210

Spec sheet

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$38.68/ EA

Qty:

Loading add to cart quantity...

Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 10A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Current Rating: 10 A

Interrupt Rating: 10 kA

Mounting Type: Plug-in

Electrical Connection: Pressure plate

Tightening Torque: 4 N.m

Width: 38 mm

Net Weight: 0.240 kg

Certifications: UL Listed, CSA Certified

Mercury Free: Yes

Voltage Rating120/240 V AC

Number of Poles2

Circuit Breaker TypeStandard

Wire SizeAWG 14...AWG 8 copper or aluminum

Height76 mm

Depth74 mm

Ambient Rating40 B0C

Halogen Content PerformanceHalogen free
