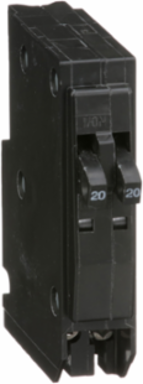

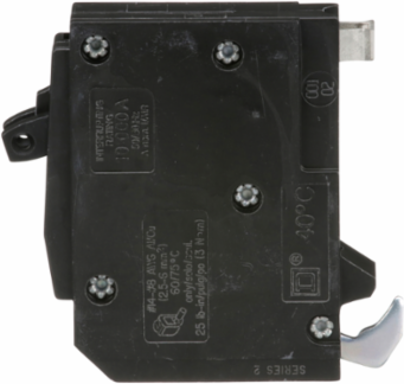

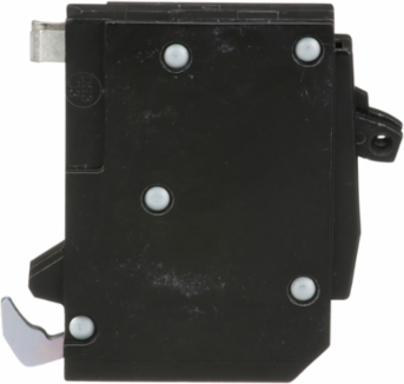

Schneider Electric QOT2020 QO Tandem Mini Circuit Breaker 20A 120/240VAC 10kA Plug-in Mount
Schneider Electric QOT2020 QO Tandem Mini Circuit Breaker 20A 120/240VAC 10kA Plug-in Mount
- MPN: QOT2020
- UPC: 785901418085
- PPN: SCH-QOT2020
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$43.54/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO tandem mini circuit breaker has 2 one pole at 20A for 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Current Rating
- 20 A
- Interrupt Rating
- 10 kA 120/240 V AC 50/60 Hz
- Mounting Type
- Plug-in
- Connection Type
- Pressure plate
- Tightening Torque
- 2.8 N.m
- Width
- 19 mm
- Net Weight
- 0.159 kg
- HACR Rated
- Yes
- Toxic Heavy Metal Free
- Yes
- China RoHS Regulation
- Out of scope
- Ambient Temperature Rating
- 40 °C
- Range
- QO
- Warranty
- 18 months
- Reach Regulation
- Contains SVHC above threshold
- Country of Origin
- Mexico
Voltage120/240 V AC
Number of Poles1P
Circuit Breaker TypeTandem
Wire SizeAWG 14-8 copper, AWG 12-8 aluminum
Height82 mm
Depth74 mm
Halogen Content PerformanceHalogen free product
Mercury FreeYes
RoHS CompliantYes, with Exemptions
EU RoHS DirectiveCompliant with Exemptions
Product TypeMiniature circuit-breaker
Number of Spaces Required1
Sustainable Offer StatusGreen Premium product
Circularity ProfileN/A
