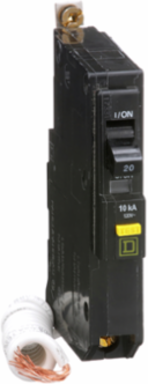

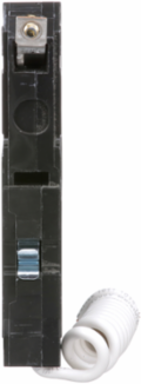

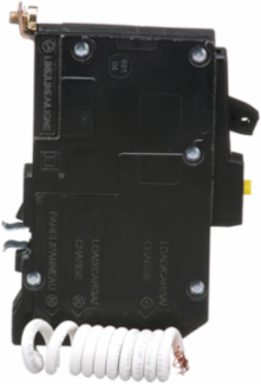

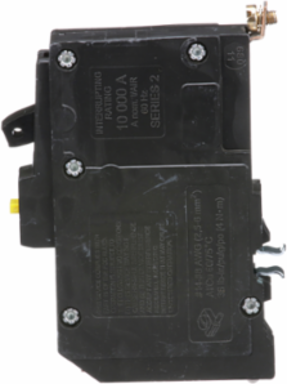

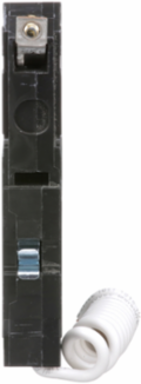

Schneider Electric QOB120GFI Mini Circuit Breaker, 20A, 1 Pole, 120V AC, 10kA, Ground Fault A 6mA

Mini Circuit Breaker, 20A, 1 Pole, 120V AC, 10kA, Ground Fault A 6mA - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/95c3b3ee27fe58702c3194cb583adb856ccf8be8-medium.png

Mini Circuit Breaker, 20A, 1 Pole, 120V AC, 10kA, Ground Fault A 6mA - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/530a834cea39527c69297c65fcfa4547864e8661-medium.png

Mini Circuit Breaker, 20A, 1 Pole, 120V AC, 10kA, Ground Fault A 6mA - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/3032f3b057e416fcdab188806f00e982aceb7bd9-medium.png

Mini Circuit Breaker, 20A, 1 Pole, 120V AC, 10kA, Ground Fault A 6mA - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/1dc8832380a13a5e12ecbe5ef6ce5d4047da7d6f-medium.png

Mini Circuit Breaker, 20A, 1 Pole, 120V AC, 10kA, Ground Fault A 6mA

Schneider Electric QOB120GFI Mini Circuit Breaker, 20A, 1 Pole, 120V AC, 10kA, Ground Fault A 6mA

MPN: QOB120GFI
UPC: 785901368717
PPN: SCH-QOB120GFI

Spec sheet

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

In Stock

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$422.00/ EA

Qty:

Loading add to cart quantity...

Description

Square D™ QO™ and QOB Miniature Circuit Breakers, QOB120GFI, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Qwik-Gard™ circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. UL listed CSA certified This 1 pole QO circuit breaker is rated at 20A at 120VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555

Specifications

Rated Current: 20 A

Breaking Capacity: 10 kA 120 V AC 50/60 Hz

Poles: 1P

Electrical Connection: Pressure plate

Tightening Torque: 4-4.6 N.m (4-4.6 Nm)

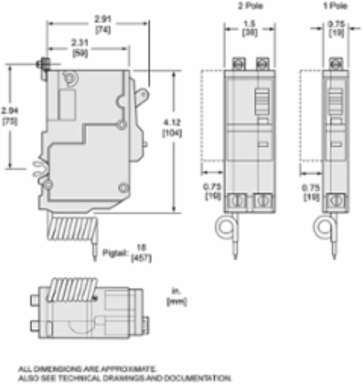

Width: 19 mm (0.75 in)

Net Weight: 0.254 kg (0.56 lb)

Product Certifications: UL listed, CSA certified

Mercury Free: Yes

Rated Voltage120 V AC

Ground Fault Sensitivity6 mA Class A

Mounting TypeBolt-on

Wire SizeAWG 14 to AWG 8 copper or aluminum

Height105 mm (4.13 in)

Depth74 mm (2.91 in)

Ambient Temperature Rating40 °C (104 °F)

RoHS ComplianceCompliant with Exemptions
