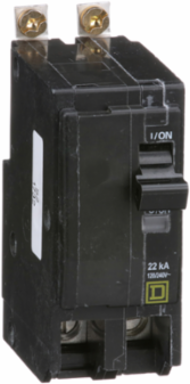

Square D QOB290VH Mini Circuit Breaker, 90A, 2 Pole, 240VAC, 22kA, Bolt-On Mount
Square D QOB290VH Mini Circuit Breaker, 90A, 2 Pole, 240VAC, 22kA, Bolt-On Mount
- MPN: QOB290VH
- UPC: 785901120674
- PPN: SCH-QOB290VH
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$300.62/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 90A at 240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Specifications
- Rated Current
- 90 A
- Breaking Capacity
- 22 kA
- Circuit Breaker Type
- standard
- Electrical Connection
- box lugs
- Wire Size
- AWG 4 to AWG 2/0 copper or aluminum
- Height
- 89 mm
- Depth
- 74 mm
- Ambient Air Temperature For Operation
- 40 °C
- Mercury Free
- Yes
Voltage120/240 V AC
Number of Poles2P
Mounting Typebolt-on
Number of Spaces Required2
Tightening Torque5.6 N.m
Width38 mm
Net Weight0.322 kg
Product CertificationsUL Listed, CSA
Halogen Content PerformanceHalogen free
