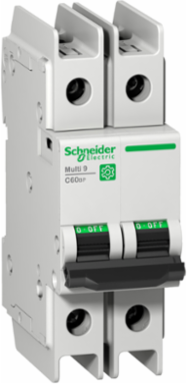

Schneider Electric M9F42202 Miniature Circuit Breaker, 2P, 2A, C Curve, 10kA, DIN Rail Mounted
Schneider Electric M9F42202 Miniature Circuit Breaker, 2P, 2A, C Curve, 10kA, DIN Rail Mounted
- MPN: M9F42202
- PPN: SCH-M9F42202
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$108.85/ EA
Description
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 2A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Features
- The Multi9 C60BP series is uniquely engineered to meet UL 489, CSA C22.2 No. 5, and IEC 60947-2 standards simultaneously. This "all-in-one" certification eliminates the need to stock multiple parts for different regions, simplifying your supply chain and ensuring your control panels remain code-compliant whether they are installed in North America or overseas.
- Featuring a C-Curve magnetic trip threshold of 7 to 10 times the rated current (I_n), the M9F42202 is optimized for circuits with moderate inrush currents like small motors, fans, and transformers. This prevents nuisance tripping during equipment startup while providing lightning-fast thermal-magnetic protection against overloads and short circuits.
- With a high breaking capacity of up to 10kA at 480Y/277V AC (UL 489), this miniature circuit breaker (MCB) is built to safely clear severe faults without catastrophic failure. This high AIC (Ampere Interrupting Capacity) rating ensures the safety of your downstream components and minimizes the risk of arc flash damage in dense industrial control panels.
- Equipped with IP20-rated insulated terminals and a high-torque clamping system, this breaker ensures a gas-tight, vibration-resistant connection for conductors up to 25mm². This prevents localized overheating caused by loose wires—a leading cause of electrical fires—and significantly reduces maintenance intervals in high-vibration machinery.
Specifications
Specifications
- [In] Rated Current
- 2 A 25 °C EN/IEC 60947-2
- Number Of Protected Poles
- 2
- Standards
- EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
- Product Or Component Type
- miniature circuit-breaker
- Range
- Multi9
- Suitability For Isolation
- yes EN/IEC 60947-2
- Device Application
- distribution
- Trip Unit Technology
- thermal-magnetic
Curve CodeC
Network TypeDC || AC
Product CertificationsIEC || CCC || CSA || UL
Product NameMulti9 C60
Breaking Capacity6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 14 kA AIR 240 V AC UL 489 || 10 kA AIR 125 V DC UL 489 || 10 kA AIR 480Y/277 V AC UL 489 || 14 kA AIR 240 V AC CSA C22.2 No 5 || 10 kA AIR 480Y/277 V AC CSA C22.2 No 5 || 10 kA AIR 125 V DC CSA C22.2 No 5
Poles Description2P
Device Short NameC60BP
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1304004EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Halogen Content PerformanceHalogen free product
Complementary
- [Ics] Rated Service Breaking Capacity
- 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
- Contact Position Indicator
- yes
- Mounting Support
- DIN rail
- Wire Stripping Length
- 14 mm for top or bottom connection
- Connections - Terminals
- tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
- Mounting Mode
- clip-on
- Mechanical Durability
- 20000 cycles
- [Uimp] Rated Impulse Withstand Voltage
- 6 kVEN/IEC 60947-2
- Width
- 36 mm
- Depth
- 72 mm
- Magnetic Tripping Limit
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Height103 mm
Earth-Leakage Protectionwithout
9 Mm Pitches4
Control Typetoggle
[Ui] Rated Insulation Voltage500 V AC EN/IEC 60947-2
Electrical Durability10000 cycles
Local SignallingON/OFF indication
Colourgrey
Provision For Padlockingpadlockable
Tightening Torque2.5-2.5 N.m top or bottom
[Ue] Rated Operational Voltage240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
Environment
- Ambient Air Temperature For Operation
- -30-70 °C
- Ip Degree Of Protection
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Ambient Air Temperature For Storage
- -40-80 °C
- Operating Altitude
- 0...2000 m
Tropicalisation2 IEC 60068-1
Pollution Degree3 EN/IEC 60947-2
Relative Humidity95-95 % 55-55 °C
