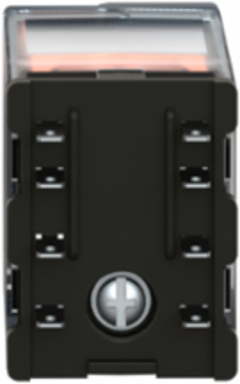

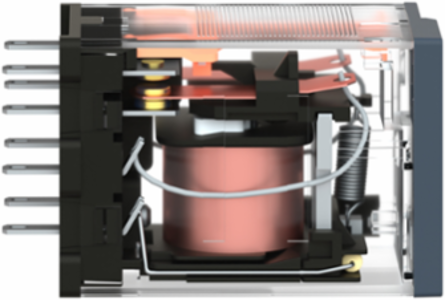

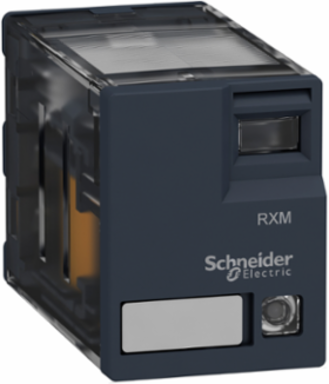

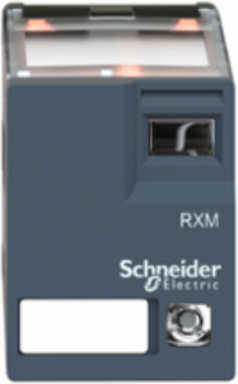

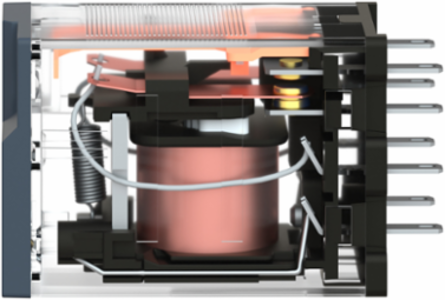

Schneider Electric RXM2AB3BD Miniature Relay, 12A, 2 C/O, 24V DC, IP40 Protection
Schneider Electric RXM2AB3BD Miniature Relay, 12A, 2 C/O, 24V DC, IP40 Protection
- MPN: RXM2AB3BD
- PPN: SCH-RXM2AB3BD
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$13.80/ EA
Description
RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 2 C/O relay with current rating of 12A, control circuit voltage of 24 V DC. It also offers a mechanical indicator where an orange flag indicates the relay contact status. A green LED on the front will illuminate when the relay is on. Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It is a green premium product and conforms to international standard and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
Specifications
Environment
- Product Certifications
- UL || Lloyd's || CE || CSA || GOST || IECEE CB Scheme
- Pollution Degree
- 3
- Dielectric Strength
- 1300 V AC between contacts micro disconnection || 2000 V AC between coil and contact basic insulation || 2000 V AC between poles basic insulation
- Shock Resistance
- 10 gnin operation || 30 gnnot operating
- Ambient Air Temperature For Storage
- -40-85 °C
StandardsIEC 61810-1 || UL 508 || CSA C22.2 No 14
Ambient Air Temperature For Operation-40-55 °C
Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation || 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Ip Degree Of ProtectionIP40 IEC 60529
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Environmental DisclosureENVPEP2106019EN
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI2106019EN
Complementary
- Maximum Switching Capacity
- 3000 VA/336 W
- Continuous Output Current
- 10 A
- Protection Category
- RT I
- Contacts Material
- AgNi
- Shape Of Pin
- flat
- Cad Overall Height
- 82.8 mm
- Average Resistance
- 650 Ohm 20 °C +/- 10 %
- Average Coil Consumption
- 0.9 W
- [Ie] Rated Operational Current
- 12 A 28 V DC) NO IEC || 12 A 250 V AC) NO IEC || 6 A 28 V DC) NC IEC || 6 A 250 V AC) NC IEC || 12 A 28 V DC) UL || 12 A 277 V AC) UL
- Electrical Durability
- 100000 cycles resistive
- Operating Position
- any position
- Load Current
- 12 A 250 V AC || 12 A 28 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50 µs
- Cad Overall Depth
- 80.35 mm
Safety Reliability DataB10d = 100000
Operating Rate<= 1200 cycles/hour under load || <= 18000 cycles/hour no-load
Test Levelslevel A group mounting
Reset Time20 ms
Net Weight0.037 kg
Maximum Switching Voltage250 V IEC
Device Presentationcomplete product
Rated Operational Voltage Limits19.2...26.4 V DC
[Ui] Rated Insulation Voltage250 V IEC || 300 V CSA || 300 V UL
Mechanical Durability10000000 cycles
Operating Time20 ms
Drop-Out Voltage Threshold>= 0.1 Uc
Minimum Switching Capacity170 mW 10 mA, 17 V
Specifications
- Utilisation Coefficient
- 20 %
- Range Of Product
- Harmony Electromechanical Relays
- Status Led
- with
- Series Name
- Miniature
- Device Short Name
- RXM
[Uc] Control Circuit Voltage24 V DC
Product Or Component Typeplug-in relay
Control Typewithout lockable test button
Contacts Type And Composition2 C/O
