Schneider Electric RXM4GB2P7 miniature plug in relay, Harmony Electromechanical Relays, 3A, 4CO, with LED, lockable test but to n, 230V AC
Schneider Electric RXM4GB2P7 miniature plug in relay, Harmony Electromechanical Relays, 3A, 4CO, with LED, lockable test but to n, 230V AC
- MPN: RXM4GB2P7
- PPN: SCH-RXM4GB2P7
- UNSPSC: 39122326
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$22.69/ EA
Description

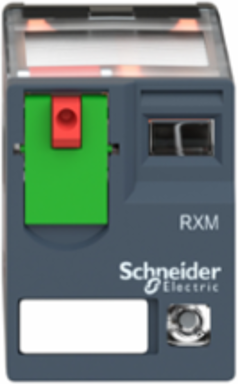

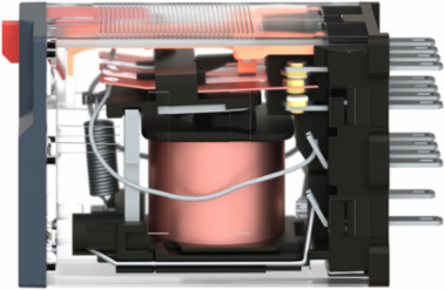

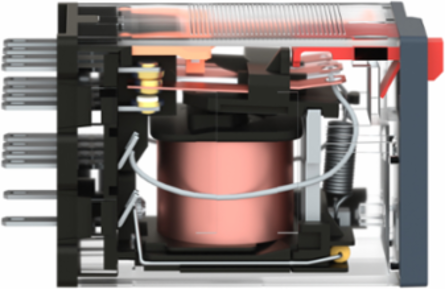

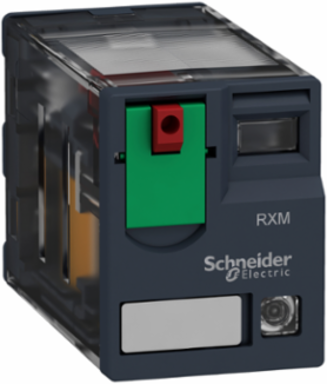

miniature plug in relay, Harmony Electromechanical Relays, 3A, 4CO, with LED, lockable test but to n, 230V AC
Features
- Fit to customer needs, coverage of most general control panel applications
- Easy to select, simple selection and wide availability
- Convenient to use, easy status readiness with mechanical indicator & LED; one-step lockable test button
- Compliant with industrial standard and eco-design
- Flexible options of sockets and accessories
- One-step lockable test button and mechanical indicator for contact status
- Electrical durability of 100,000 cycles
- Wide range of operating temperature from -40°F to 131°F
Specifications
Conformance Attributes
- Product Certifications
- UL, Lloyd's, CE, CSA, GOST, IECEE CB Scheme
StandardsCSA C22.2 No 14, UL 508, IEC 61810-1
Complementary Attributes
- Control Circuit Type
- AC
- Maximum Switching Voltage
- 250 V IEC
- Minimum Switching Capacity
- 15 mW 3 mA, 5 V
Line Rated Current3 A
Maximum Switching Capacity750 VA/84 W
Rated Operational Voltage Limits184...253 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1300 V AC between contacts with micro disconnection, 2000 V AC between coil and contact, 2000 V AC between poles
- Load Current
- 3 A 250 V AC, 3 A 28 V DC
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation, 5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Uc Control Circuit Voltage2
- 230 V AC 50/60 Hz, 230 V
- Carbon Footprint Of The Distribution Phase A4
- 0.0050318838, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0002384922, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 20 kg CO2 eq., 19.6210266924
- Ie Rated Operational Current5
- 2 A 28 V DC) NO IEC, 2 A 250 V AC) NO IEC, 1 A 28 V DC) NC IEC, 1 A 250 V AC) NC IEC, 3 A 28 V DC) UL, 3 A 277 V AC) UL
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Function Option
- Standard
- Contacts Material
- gold plated bifurcated silver
- Control Type
- lockable test button
- Mechanical Durability
- 10000000 cycles
- Operating Time
- 20 ms
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony Electromechanical Relays
- Returnability
- No
- Shape Of Pin
- flat (faston type)
- Sustainable Packaging
- Yes
- Ithe Conventional Enclosed Thermal Current2
- 3 A -40-55 °C
- Medium Desc
- miniature plug in relay, Harmony Electromechanical Relays, 3A, 4CO, with LED, lockable test but to n, 230V AC
- Product Kit Identifier
- N
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- RXM.AB Miniature plug-in relay is to control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal .This range consists of RXM2AB, RXM3AB, RXM4AB/GB series. The range consists of miniature electromagnetic relays with 2, 3 or 4 C/O contacts with/without LED indicator and push button. The control voltage ranging from 24 Vac to 230 Vac and 12 Vdc.to 220Vdc with rated current 12A and product meets IEC 61810-1, UL 508 standards.
- Energy Model Manufacturing A1 A3 2
- Energy model used: China
- Energy Model Use B6 2
- Electricity mix; AC; 120V; US
- Average Coil Consumption In Va
- 1.2-1.2 60 Hz
- Average Resistance
- 15000 Ohm 20 °C +/- 15 %
- Reset Time
- 20 ms
- Utilisation Coefficient
- 20 %
- Ithe Conventional Enclosed Thermal Current5
- 3 A -40-55 °C
- Uimp Rated Impulse Withstand Voltage5
- 2.5 kV 1.2/50 µs
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Drop Out Voltage Threshold>= 0.15 Uc, >= 0.15 Uc
Shock Resistance10 gnin operation, 30 gnnot operating
Ie Rated Operational Current22 A 28 V DC) NO IEC, 2 A 250 V AC) NO IEC, 1 A 28 V DC) NC IEC, 3 A 28 V DC) UL, 3 A 277 V AC) UL
Ui Rated Insulation Voltage2250 V IEC, 300 V CSA, 300 V UL
Carbon Footprint Of The End Of Life Phase C1 To C40 kg CO2 eq., 0.0051015887
Carbon Footprint Of The Manufacturing Phase A1 To A30.3 kg CO2 eq., 0.3085613559
Operating Rate<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Ui Rated Insulation Voltage5250 V IEC, 300 V CSA, 300 V UL
Local Publishable Date2026-01-12
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2106019EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Compatibility CodeRXM
Contacts Type And Composition4 C/O
Electrical Durability100000 cycles resistive depending on mounting position and working environment
Operating Positionany position
Package Weight Lbs35.000 g
Product Or Component Typeplug-in relay
Relay Typeminiature relay
Series NameRXM series
Status Ledwith
Total Lifecycle Carbon Footprint20 kg CO2 eq.
Uimp Rated Impulse Withstand Voltage22.5 kV 1.2/50 µs
Stocking FlagY
Pep CodeENVPEP2106019EN
Pep Verification Date2021-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity mix; AC; 120V; US
Energy Model End Of Life C1 C4 2Electricity mix; AC; 120V; US
Average Consumption1.2 VA 60 Hz
Protection CategoryRT I
Test Levelslevel A group mounting
Global Commercial StatusCommercialised
Uc Control Circuit Voltage5230 V AC 50/60 Hz
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- China ROHS Regulation
- X
- Ambient Air Temperature For Storage
- -40-85 °C
- Environmental Disclosure
- ENVPEP2106019EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2106019EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-40-55 °C, -40-55 °C
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Carbon Footprint19.9399600129
Circularity ProfileENVEOLI2106019EN
IP Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2021-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
Downloads
