Schneider Electric TM172PDG28R Controller, Modicon M171/M172/M173, performance, display, 28 IO, Ethernet, Modbus
Schneider Electric TM172PDG28R Controller, Modicon M171/M172/M173, performance, display, 28 IO, Ethernet, Modbus
- MPN: TM172PDG28R
- PPN: SCH-TM172PDG28R
- UNSPSC: 32151705
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$624.52/ EA
Description

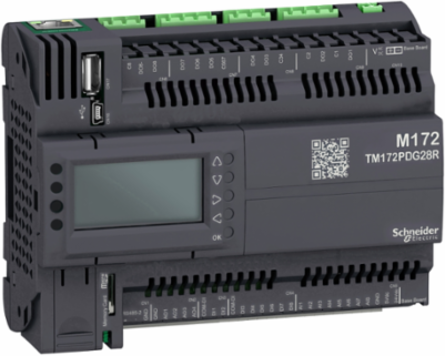

This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 8 discrete inputs with sink or source (positive/negative) discrete logic. It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 8 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, ±0V to ±10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.3kg. The main application of this module is HVAC control. This product is certified by CE, EAC, CSA and CURus. It meets EN/IEC 60730 standard. It is suitable for panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Features
- Flexible, faster and easier to deploy
- Ready to connect device
- Advanced algorithms for greater energy efficiency
- Sustainable, protect people, assets and environment
- Modicon controllers are part of EcoStruxure Machine
- Reduce energy consumption and improves system efficiency
- CE approved
- cURus, EAC and CSA certified
- IP20 degree of protection
- Wide range of operating temperature from -20°C to 65°C
Specifications
Conformance Attributes
- Product Certifications
- EAC, CSA, CE, cURus
StandardsEN/IEC 60730, UL94 (material V0)
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Local Signalling
- 1 LED (red) for programmable, 1 LED (yellow) for programmable, 1 LED (green) for programmable, 1 LED (green) for power
- Number Of Port
- 1 CAN port - screw terminal block, 1 USB type A - USB type A female, 1 USB type mini B - USB device port Mini-B, 2 RS485 - screw terminal block Modbus serial link or BACnet MS/TP), 1 Ethernet - RJ45 Modbus TCP and BACnet IP with webserver)
- Us Rated Supply Voltage2
- 24 V +/- 10 % AC, 20...38 V DC
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 1 kg CO2 eq., 1.037092482472762
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 37 kg CO2 eq., 37.02101742543932
- Us Rated Supply Voltage5
- 24 V +/- 10 % AC, 20...38 V DC
- Local Publishable Date
- 2026-01-12
- WEEE Applicability
- Finished product
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Market Segmentation
- Industrial
- Overvoltage Category
- II
- Power Consumption In W
- 15 W 24 V AC/DC
- Product Or Component Type
- programmable controllers
- Range Of Product
- Modicon M171/M172
- Returnability
- No
- Total Lifecycle Carbon Footprint
- 660 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Stocking Flag
- Y
- Pep Code
- ENVPEP1709014EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Mounting Supportpanel mounting with accessory, DIN rail
Sensor Power Supply5-5 V DC 50 mA supplied by the controller, 24-24 V DC 150 mA supplied by the controller
Carbon Footprint Of The Distribution Phase A40.1562931105123967, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.02976637944179302, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6622 kg CO2 eq., 621.7379964170797
Local Data StatusPublishable
ManufacturerSchneider Electric
WEEE ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1709014EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Display TypeBacklit LCD - 128 x 64 pixels
Package Weight Lbs397.0 g
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Specific ApplicationHVAC and pumping solution
Realtime Clockbuilt-in clock at -20-60 °C
Sustainable PackagingNo
UpdatabilityYes
Medium DescController, Modicon M171/M172/M173, performance, display, 28 IO, Ethernet, Modbus
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionTo manage a wide range of HVAC/R, pumping and many other applications and a 100% of the time for 10 years
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; Italy, IT
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; Asia Pacific, APAC
UpgradeabilityYes
Environment Attributes Main
- Take Back
- No, Nej
- Directives
- 86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 659.9821658149459
- Circularity Profile
- ENVEOLI1709014EN
- IP Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1709014EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Operation-20-60 °C UL 60730-1, -20-60 °C UL 60730-1, -20-65 °C with derating UL 60730-1, -20-65 °C with derating UL 60730-1, -20-65 °C with derating UL 60730-1, -20-60 °C UL 60730-1, -20-60 °C UL 60730-1, -20-65 °C with derating UL 60730-1
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Storage-30-70 °C
Environmental DisclosureENVPEP1709014EN
Operating Altitude0...6561.68 ft (0...2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity5-95 % non-condensing
Pep Verification Date2025-09-01
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- programmable controllers
- Upgradeability
- Yes
Range Of ProductModicon M171/M172
Output Attributes
- Analogue Output Number
- 2 voltage 0...10 V, 2 voltage/current 4...20 mA or 0...10 V or PWM (2 kHz)
- Discrete Output Number
- 2 relay outputs SPST with independent common, 1 relay outputs SPDT with independent common, 3 relay outputs SPST with same common, 2 relay outputs SPST with same common
Discrete Output Current1 A relay SPDT, 3 A relay SPST
Input Attributes
- Analogue Input Type
- impedance 0...1500 hOhm, impedance 0...300 daOhm, NTC temperature probe - 50...110 °C 0.1 °C extended), voltage 0...10 V, NTC temperature probe - 40...150 °C 0.1 °C, current 0...20 mA/4...20 mA, PTC temperature probe - 55...150 °C 0.1 °C, voltage 0...5 V absolute or ratiometric), Pt 1000 temperature probe - 200...850 °C 0.1 °C
- Analogue Input Number
- 8 configurable by pair
- Discrete Input Logic
- sink or source (positive/negative)
- Discrete Input Voltage
- 24 V AC/DC
- Number Of Inputs Outputs
- 28
Input Output Number8 digital input, 8 analog input, 4 analog output, 8 digital output
Discrete Input Current2.5 mA
Discrete Input Number8
Input Impedance10 kOhm
Specifications
- Country of Origin
- Sweden, United States
Depth60.5 mm
Batteries & Runtime Attributes
- Removable Battery
- Yes
Downloads
