Schneider Electric RM35HZ21FM Frequency Control Relay, 5A, 120-277V AC, 35mm DIN Rail
Schneider Electric RM35HZ21FM Frequency Control Relay, 5A, 120-277V AC, 35mm DIN Rail
- MPN: RM35HZ21FM
- PPN: SCH-RM35HZ21FM
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$250.55/ EA
Description

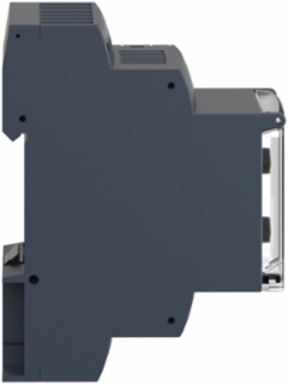

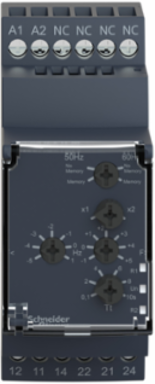

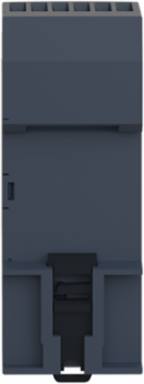

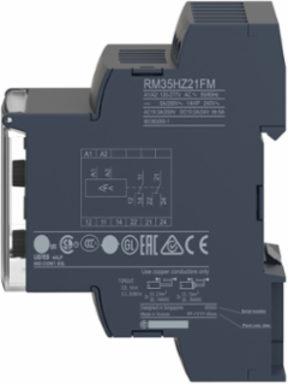

This Harmony RM35-HZ control relay allows monitoring of frequency control. This modular control relay is ideal for monitoring of frequency variations in electrical power sources such as wind turbine and micro-power stations. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides an automatic detection of abnormal electrical values before they incur serious damage to machinery thus reducing your maintenance and downtime costs. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0
Specifications
Environment
- Product Certifications
- GL || UL || CSA || C-Tick || GOST
- Standards
- IEC 60255-6 || NF EN 60255-6
- Dielectric Test Voltage
- 2 kV AC 50 Hz
- Shock Resistance
- 15 gn 11 ms IEC 60255-21-1
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Ambient Air Temperature For Storage
- -40-70 °C
- Non-Dissipating Shock Wave
- 4 kV
Ambient Air Temperature For Operation-20-50 °C
Immunity To Microbreaks10 ms
Electromagnetic Compatibilityemission standard for industrial environments IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2
Vibration Resistance0.35 mm 5-57.6 Hz)IEC 60068-2-6/IEC 60255-21-1 || 1 gn 57.6-150 Hz)IEC 60068-2-6/IEC 60255-21-1
Pollution Degree3 IEC 60664-1
Relative Humidity95-95 % 55-55 °C IEC 60068-2-30
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1504008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Maximum Measuring Cycle
- 200 ms measurement cycle as true rms value
- Insulation Resistance
- > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
- [Us] Rated Supply Voltage
- AC non self-powered
- Status Led
- 1 LED green power ON || 1 LED yellow correct frequency (high R1) || 1 LED yellow correct frequency (low R2)
- Contacts Material
- cadmium free
- Operating Position
- any position without derating
- Maximum Switching Voltage
- 250 V AC/DC
- Reset Time
- 2000 ms time delay
- [Ui] Rated Insulation Voltage
- 400 V IEC 60664-1
- Insulation
- no galvanic insulation between supply and measurement
- Mounting Support
- 35 mm symmetrical DIN rail IEC 60715
- Mechanical Durability
- 30000000 cycles
- Housing Material
- self-extinguishing plastic
- Control Circuit Frequency
- 40...70 Hz
- Width
- 35 mm
- Electrical Durability
- 100000 cycles
- Run-Up Delay At Power-Up
- 0.5 s
- Supply Frequency
- 50/60 Hz +/- 10 %
Hysteresis0.3-0.3 % fixed
Measurement Error+/- 0.05 %/°C with temperature variation || < +/- 1 % over the whole range with voltage variation
Operating Rate<= 360 operations/hour full load
Output Contacts1 C/O + 1 C/O
MarkingCE : 73/23/EEC || CE : EMC 89/336/EEC
Threshold Setting-2...10 Hz || -10...2 Hz
Control Typewithout test button
Connections - Terminalsscrew terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Overvoltage CategoryIII IEC 60664-1
Supply Voltage Limits102-308 V AC
Nominal Output Current5 A
Input Frequency70 Hz
Control Circuit Voltage Limits15 % + 10 % Un
Measurement Accuracy+/- 10 % of the full scale value in input || +/- 10 % of the full scale value in time delay
Tightening Torque0.6-1 N.m IEC 60947-1
[Us] Rated Supply Voltage120...277 V AC
Repeat Accuracy+/- 0.5 % input and measurement circuit || +/- 0.5 % time delay
Specifications
- Minimum Switching Current
- 10 mA 5 V DC
- Measurement Range
- 40...70 Hz frequency
- Product Or Component Type
- frequency control relay
- Relay Name
- RM35HZ21FM
- Time Delay Type
- adjustable 0.1...10 s, +/- 10 % Tt- time delay upon fault
- Maximum Power Consumption In Va
- 6 VA AC
Range Of ProductHarmony Control Relays
Switching Capacity In Va1250 VA
Utilisation CategoryAC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
Relay Typefrequency control relays
Relay Monitored Parametersoverfrequency and underfrequency 50 or 60 Hz
