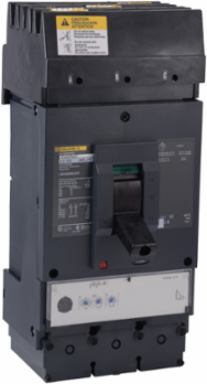

Square D LDA36250U33X PowerPacT L Circuit Breaker 250A 3 Pole 600VAC 14kA MicroLogic 3.3S
Square D LDA36250U33X PowerPacT L Circuit Breaker 250A 3 Pole 600VAC 14kA MicroLogic 3.3S
- MPN: LDA36250U33X
- PPN: SCH-LDA36250U33X
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
The Schneider Electric LDA36250U33X PowerPacT L Circuit Breaker is engineered for robust power distribution with a dependable 250A capacity, designed for three-pole configurations at 600VAC. This circuit breaker features advanced MicroLogic 3.3S technology, providing enhanced protection and monitoring to meet the needs of modern electrical systems. With a short-circuit rating of 14kA, it ensures reliable thermal and mechanical protection, making it an indispensable component in various industrial applications. Its reliability and efficiency are key for maintaining safety and performance in power distribution networks.
Specifications
- Rated Current
- 250 A
- Breaking Capacity
- 25 kA 240 V AC, 18 kA 480 V AC, 14 kA 600 V AC, 20 kA 250 V DC IEC 60947-2
- Trip Unit Technology
- MicroLogic 3.3 S Electronic
- Rated Insulation Voltage
- 750 V IEC 60947-2
- Suitability For Isolation
- Yes IEC 60947-2

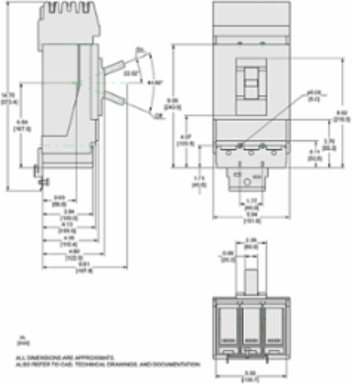

- Dimensions
- Height 340 mm (13.39 in), Width 140 mm (5.51 in), Depth 110 mm (4.33 in)
- AWG Gauge
- AWG 2...600 kcmil copper, AWG 2...500 kcmil aluminum
- IP Degree of Protection
- Front cover IP40
- Operating Temperature Range
- -25 to 70 °C (-13 to 158 °F)
- Operating Altitude
- < 2000 m without derating, up to 5000 m with derating
- Communication Interface
- Modbus, Ethernet
Voltage600 V AC 50/60 Hz IEC 60947-3
Poles3
Continuous Current Rating80%
Protection TechnologyCurrent limiter
Mounting ModeI-Line bracket
Net Weight6.2 kg (13.67 lb)
ColorBlack
Pollution Degree3 IEC 60947-1
Storage Temperature Range-50 to 85 °C (-58 to 185 °F)
ComplianceUL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2, RoHS
