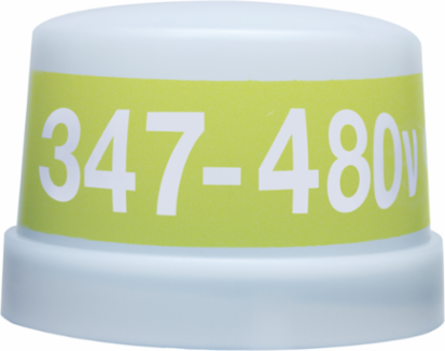

Intermatic LED4537SC NIGHTFOX Electronic Photocontrol 347/480 V 2.75 Inch Height
- MPN: LED4537SC
- UPC: 078275148987
- PPN: INT-LED4537SC
- UNSPSC: 39121524
CAD
$66.05
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Photocontrol specifically designed for 20-year service to match the life expectancy of long-life LED and new induction fixtures.
Features
- Non-drift silicon light sensor with IR filter
- DC relay with zero-crossing circuitry for extended life
- All components meet 20-year life expectancy
- Conformal coated PCB
- Exceeds 15,000 ON/OFF switching cycles
- Ideal for single or multi-fixture HID and LED installations (up to 2,220 W @ 277 VAC)
- 685 J MOV surge protection
- High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage Rating Range(s)
- 347/480 VAC, 50/60 Hz
- Color
- White with Yellow Band
- Marketing Description
- Photocontrol specifically designed for 20-year service to match the life expectancy of long-life LED and new induction fixtures.
- Country of Origin
- Mexico
Warranty Period12-Year limited
ApplicationsOutdoor Lighting Control
Height2.75 in
