Schneider Electric C10F3TM063 Circuit breaker, ComPacT NSX100F, 36kA/415VAC, 3 poles, TMD trip unit 63A
Schneider Electric C10F3TM063 Circuit breaker, ComPacT NSX100F, 36kA/415VAC, 3 poles, TMD trip unit 63A
- MPN: C10F3TM063
- PPN: SCH-C10F3TM063
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1929.74/ EA
Description

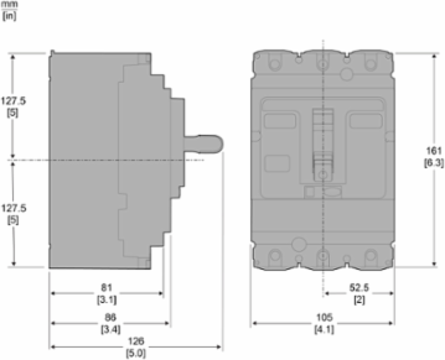

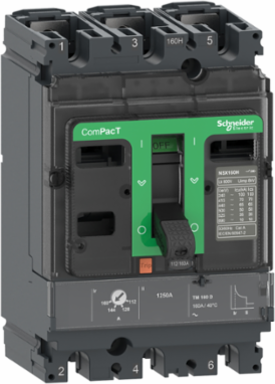

This ComPacT NSX100F is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 63A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX100F is part of Schneider Electric EcoStruxure Power architecture.
Specifications
Assets
- Cad
- https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000044_3D-CAD&p_File_name=MCADPP0000044_3D-simplified.stp, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000044_3D-CAD&p_File_name=MCADPP0000044_2D-back.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000044_3D-CAD&p_File_name=MCADPP0000044_2D-back.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000044_3D-CAD&p_File_name=MCADPP0000044_2D-bottom.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000044_3D-CAD&p_File_name=MCADPP0000044_2D-bottom.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000044_3D-CAD&p_File_name=MCADPP0000044_2D-front.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000044_3D-CAD&p_File_name=MCADPP0000044_2D-front.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000044_3D-CAD&p_File_name=MCADPP0000044_2D-isometric.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000044_3D-CAD&p_File_name=MCADPP0000044_2D-isometric.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000044_3D-CAD&p_File_name=MCADPP0000044_2D-left.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000044_3D-CAD&p_File_name=MCADPP0000044_2D-left.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000044_3D-CAD&p_File_name=MCADPP0000044_2D-right.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000044_3D-CAD&p_File_name=MCADPP0000044_2D-right.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000044_3D-CAD&p_File_name=MCADPP0000044_2D-top.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000044_3D-CAD&p_File_name=MCADPP0000044_2D-top.dxf
Conformance Attributes
- Standards
- EN/IEC 60947-2
Complementary Attributes
- Ics Rated Service Breaking Capacity
- 85 kA 220/240 V AC 50/60 Hz IEC 60947-2, 36 kA 380/415 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2, 12 kA 500 V AC 50/60 Hz IEC 60947-2, 11 kA 525 V AC 50/60 Hz IEC 60947-2, 4 kA 660/690 V AC 50/60 Hz IEC 60947-2
- Line Rated Current
- 63 A 40 °C
- Long Time Pick Up Adjustment Range
- 0.7...1 x In
- Rated Current
- 63 A
- Ui Rated Insulation Voltage
- 800 V AC 50/60 Hz
Tr Long Time Delay Adjustment Range120-400 s 1.5 x In, 15-15 s 6 x Ir
Long Time Delay Adjustment Typefixed
Long Time Pick Up Adjustment Type Iradjustable
Ue Rated Operational Voltage690 V AC 50/60 Hz
Uimp Rated Impulse Withstand Voltage8 kV
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 50000 cycles 440 V In/2, 30000 cycles 440 V In, 20000 cycles 690 V In/2, 10000 cycles 690 V In
- Poles Description
- 3P, 3P
- Ics Rated Service Breaking Capacity
- 85 kA 220/240 V AC 50/60 Hz IEC 60947-2, 36 kA 380/415 V AC 50/60 Hz IEC 60947-2, 35 kA 440 V AC 50/60 Hz IEC 60947-2, 12 kA 500 V AC 50/60 Hz IEC 60947-2, 11 kA 525 V AC 50/60 Hz IEC 60947-2, 4 kA 660/690 V AC 50/60 Hz IEC 60947-2
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 3.0059258503401356, 3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 10 kg CO2 eq., 9.821333333333333
- Medium Desc
- Circuit breaker, ComPacT NSX100F, 36kA/415VAC, 3 poles, TMD trip unit 63A
- Local Publishable Date
- 2025-07-10
- Return Indicator
- N
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Applicability
- Finished product
- Legacy Weee Scope
- In
- Bvb
- Recommended
- End Of Life Doc Ref
- ENVEOLI2304017EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option
- Standard
- Compatibility Code
- NSX100
- Control Type
- toggle
- Device Short Name
- NSX100F
- Earth Leakage Protection
- without
- Energy Efficiency Optimized
- False
- Instantaneous Pick Up Adjustment Range
- 500 A
- Long Time Pick Up Adjustment Range
- 0.7...1 x In
- Mounting Mode
- fixed
- Network Frequency
- 50/60 Hz
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Range
- ComPacT
- Returnability
- No
- Suitability For Isolation
- yes EN/IEC 60947-2
- Total Lifecycle Carbon Footprint
- 153 kg CO2 eq.
- Trip Unit Protection Functions
- LI
- Trip Unit Technology
- thermal-magnetic
- Utilisation Category
- category A
- China Green Design Product
- Yes
- Circuit Breaker Rating Code 1 Breaking Capacity
- 36 kA
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage up to 690V AC and rated current up to 250A. This protection is ensured in accordance with the following parameters:& 10- Number of poles = 3P& 10- Rated breaking capacity = F 36kA 415V AC& 10- Tripping curve = Type C [LI = long time, instantaneous]& 10- IP degree of protection = IP40 conforming to IEC 60529& 10- IK degree of protection = IK07 conforming to IEC 62262
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; PL
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 161 mm
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Mounting Positionhorizontal and vertical, flat on the back
Protection TypeL : for overload protection (thermal), I : for short-circuit protection (magnetic)
Carbon Footprint Of The Distribution Phase A40.512527074829932, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.2 kg CO2 eq., 0.15007598639455783
Carbon Footprint Of The Use Phase B2 B3 B4 B6139 kg CO2 eq., 139.15415606400003
Local Data StatusPublishable
Global Commercial StatusCommercialised
Country Of Origin 6PL
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeNo
Without Single Use PlasticYes
Function Option IdSTANDARD
Product Kit IdentifierN
Connection Pitch35 mm
Device Applicationdistribution
Downside Connectionfront
Electrical Shock Protection Classclass II front face
Halogen Free StatusProduct contains halogen above thresholds
Instantaneous Pick Up Adjustment Type Iifixed
Mechanical Durability50000 cycles
Mounting Supportbackplate
Network TypeAC
Power Dissipation Per Pole8.61 W
Product NameComPacT NSX
Protected Poles Description3D
Range Of ProductComPacT NSX100...250
Software Versionv5.9.4
Sustainable PackagingNo
Trip Unit NameTM-D
Trip Unit Rating63-63 A 40 °C
Upside Connectionfront
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rated Current 163 A
Pep CodeENVPEP2304017EN
Pep Verification Date2023-06-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunité (unit)
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; UE-27
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal105 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- Nej
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 152.64401830889798
- Ambient Air Temperature For Storage
- -50-85 °C
- Environmental Disclosure
- ENVPEP2304017EN
- Halogen Content Performance
- Product contains halogen above thresholds
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2304017EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Operating Altitude0...6561.68 ft (0...2000 m) without derating, 2000 m...5000 m with derating
Halogene PerformanceProduct contains halogen above thresholds
Mercury FreeYes
Ambient Air Temperature For Operation-25-70 °C
Circularity ProfileENVEOLI2304017EN
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP40 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Relative Humidity0-95 %
Pep Verification Date2023-06-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- circuit breaker
Range Of ProductComPacT NSX100...250
ETIM
- ETIM 8
- EC000228
