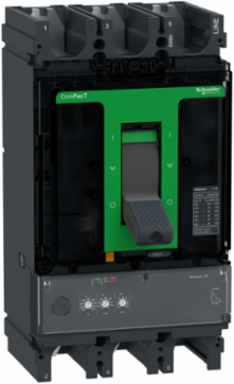

Schneider Electric C63H32D630 Circuit breaker, ComPacT NSX630H, 70kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A
Schneider Electric C63H32D630 Circuit breaker, ComPacT NSX630H, 70kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A
- MPN: C63H32D630
- PPN: SCH-C63H32D630
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This ComPacT NSX630H is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit, with 630A rating. MicroLogic 2.3 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX630H is part of Schneider Electric EcoStruxure Power architecture.
Specifications
Assets
- Cad
- https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000079_3D_CAD&p_File_name=MCADPP0000079_2D-back.dwg.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000079_3D_CAD&p_File_name=MCADPP0000079_2D-back.dxf.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000079_3D_CAD&p_File_name=MCADPP0000079_2D-bottom.dwg.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000079_3D_CAD&p_File_name=MCADPP0000079_2D-bottom.dxf.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000079_3D_CAD&p_File_name=MCADPP0000079_2D-front.dwg.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000079_3D_CAD&p_File_name=MCADPP0000079_2D-front.dxf.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000079_3D_CAD&p_File_name=MCADPP0000079_2D-isometric.dwg.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000079_3D_CAD&p_File_name=MCADPP0000079_2D-isometric.dxf.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000079_3D_CAD&p_File_name=MCADPP0000079_2D-left.dwg.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000079_3D_CAD&p_File_name=MCADPP0000079_2D-left.dxf.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000079_3D_CAD&p_File_name=MCADPP0000079_2D-right.dwg.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000079_3D_CAD&p_File_name=MCADPP0000079_2D-right.dxf.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000079_3D_CAD&p_File_name=MCADPP0000079_2D-top.dwg.dwg, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000079_3D_CAD&p_File_name=MCADPP0000079_2D-top.dxf.dxf, https://download.schneider-electric.com/files?p_Doc_Ref=MCADPP0000079_3D_CAD&p_File_name=MCADPP0000079_3D-simplified.stp.stp
Conformance Attributes
- Standards
- EN/IEC 60947-2
Complementary Attributes
- Ics Rated Service Breaking Capacity
- 100 kA 220/240 V AC 50/60 Hz IEC 60947-2, 70 kA 380/415 V AC 50/60 Hz IEC 60947-2, 65 kA 440 V AC 50/60 Hz IEC 60947-2, 50 kA 500 V AC 50/60 Hz IEC 60947-2, 11 kA 525 V AC 50/60 Hz IEC 60947-2, 10 kA 660/690 V AC 50/60 Hz IEC 60947-2
- Line Rated Current
- 630 A 40 °C
- Long Time Pick Up Adjustment Range
- 250...630 A
- Rated Current
- 630 A
- Ue Rated Operational Voltage
- 690 V AC 50/60 Hz
- Uimp Rated Impulse Withstand Voltage
- 8 kV
Tr Long Time Delay Adjustment Range400-400 s 1.5 x Ir, 16-16 s 6 x Ir, 11-11 s 7.2 x Ir
Long Time Delay Adjustment Typefixed
Long Time Pick Up Adjustment Type Iradjustable 9 settings
Isd Short Time Pick Up Adjustment Range1.5...10 x Ir
Ui Rated Insulation Voltage800 V AC 50/60 Hz
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 8000 cycles 440 V In/2, 4000 cycles 440 V In, 6000 cycles 690 V In/2, 2000 cycles 690 V In
- Mounting Position
- horizontal and vertical, flat on the back
- Protection Type
- L : for overload protection (long time), So : for short time short-circuit protection with fixed delay, I : for instantaneous short-circuit protection
- Carbon Footprint Of The Distribution Phase A4
- 0.9229637771448914, 0.9 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.6 kg CO2 eq., 0.6026147739409043
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 641 kg CO2 eq., 641.2622343749998
- Local Data Status
- Publishable
- Global Commercial Status
- Commercialised
- Stocking Flag
- Y
- Serviceability
- Yes
- Field Service Division
- PPIBS
- Weee Applicability
- Finished product
- Legacy Weee Scope
- In
- Bvb
- Recommended
- End Of Life Doc Ref
- ENVEOLI2304018EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option
- Standard
- Compatibility Code
- NSX630
- Control Type
- toggle
- Device Short Name
- NSX630H
- Earth Leakage Protection
- without
- Energy Efficiency Optimized
- False
- Instantaneous Pick Up Adjustment Range
- 6900 A
- Long Time Pick Up Adjustment Range
- 250...630 A
- Mounting Mode
- fixed
- Network Frequency
- 50/60 Hz
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Range
- ComPacT
- Returnability
- No
- Short Time Pick Up Adjustment Type Isd
- adjustable 9 settings
- Suitability For Isolation
- yes EN/IEC 60947-2
- Thermal Memory
- 20 minutes before and after tripping
- Trip Unit Name
- MicroLogic 2.3
- Trip Unit Rating
- 630-630 A 40 °C
- Updatability
- No
- Upside Connection
- front
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Green Design Product
- Yes
- Silicone Free
- No
- Circuit Breaker Rating Code 1 Breaking Capacity
- 70 kA
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage up to 690V AC and rated current up to 400A. This protection is ensured in accordance with the following parameters:& 10- Number of poles = 3P& 10- Rated breaking capacity = N 50kA 415V AC& 10- Tripping curve = Adjustable [LS0I = long time, short time (fixed delay), instantaneous]& 10- IP degree of protection = IP40 conforming to IEC 60529& 10- IK degree of protection = IK07 conforming to IEC 62262
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 255 mm
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Local Signallingflashing LED (green) for ready to operate, LED 105 % Ir (red) for overload, LED 90 % Ir (orange) for overload
Poles Description3P, 3P
Ics Rated Service Breaking Capacity100 kA 220/240 V AC 50/60 Hz IEC 60947-2, 70 kA 380/415 V AC 50/60 Hz IEC 60947-2, 65 kA 440 V AC 50/60 Hz IEC 60947-2, 50 kA 500 V AC 50/60 Hz IEC 60947-2, 11 kA 525 V AC 50/60 Hz IEC 60947-2, 10 kA 660/690 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The End Of Life Phase C1 To C411.342805268778926, 11 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A336 kg CO2 eq., 36.386536133855465
Medium DescCircuit breaker, ComPacT NSX630H, 70kA/415VAC, 3 poles, MicroLogic 2.3 trip unit 630A
Local Publishable Date2025-07-10
Return IndicatorN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
China Rohs In ScopeNo
Without Single Use PlasticYes
Function Option IdSTANDARD
Product Kit IdentifierN
Connection Pitch45 mm
Device Applicationdistribution
Downside Connectionfront
Electrical Shock Protection Classclass II front face
Halogen Free StatusProduct contains halogen above thresholds
Instantaneous Pick Up Adjustment Type Iifixed
Mechanical Durability15000 cycles
Mounting Supportbackplate
Network TypeAC
Power Dissipation Per Pole39.7 W
Product NameComPacT NSX
Protected Poles Description3D
Range Of ProductComPacT NSX400...630
Short Time Delay Adjustment Typefixed
Software Versionv5.9.4
Sustainable PackagingNo
Total Lifecycle Carbon Footprint691 kg CO2 eq.
Trip Unit Protection FunctionsLSoI
Trip Unit Technologyelectronic
UpgradeabilityNo
Utilisation Categorycategory A
Zone Selective Interlocking Zsiwithout
Isd Short Time Pick Up Adjustment Range1.5...10 x Ir
Rated Current 1630 A
Pep CodeENVPEP2304018EN
Pep Verification Date2023-09-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunité (unit)
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; UE-27
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal140 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- Nej
- Recycled Metal Content At Cr Level
- 0 %
- Silicon Free
- No
- Ambient Air Temperature For Operation
- -25-70 °C
- Circularity Profile
- ENVEOLI2304018EN
- Eu Rohs Directive
- Compliant By Exemption
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Relative Humidity
- 0-95 %
- Pep Verification Date
- 2023-09-01
- Psr Version
- PSR-0005-ed2-2016 03 29
Operating Altitude0...6561.68 ft (0...2000 m) without derating, 2000 m...5000 m with derating
Halogene PerformanceProduct contains halogen above thresholds
Mercury FreeYes
Carbon Footprint690.5171543287199
Ambient Air Temperature For Storage-50-85 °C
Environmental DisclosureENVPEP2304018EN
Halogen Content PerformanceProduct contains halogen above thresholds
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2304018EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
- Upgradeability
- No
Range Of ProductComPacT NSX400...630
ETIM
- ETIM 8
- EC000228
ETIM 9EC000228
Specifications
- Depth
- 110 mm
