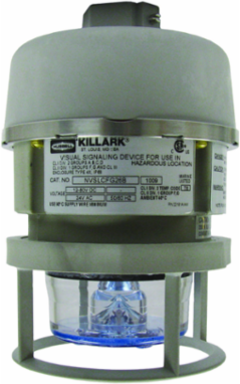

Killark NVSLCSG25GAG LED Strobe Light Fixture, 3/4 Inch Pendant Mount, IP66, 120-240VAC
Killark NVSLCSG25GAG LED Strobe Light Fixture, 3/4 Inch Pendant Mount, IP66, 120-240VAC
- MPN: NVSLCSG25GAG
- UPC: 783936070438
- PPN: HBL-NVSLCSG25GAG
- UNSPSC: 39111706
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1106.42/ EA
Description
NV2 Series - Gray Non-Metallic Corrosion Resistant Compact Steady LED Light Fixture (LED Included) - 3/4 Inch Pendant Mount With Green Strobelight And Guard - 120-240VAC At 50/60Hz
Features
- NVSL Series LED with very compact profile and 50,000 hours expected life steady - on or flashing.
- NVSZ Series Xenon with 10,000 hours expected life flashing only.
- LED utilizes inverted cone design to provide full 360 degree coverage for more light projection.
- LED and Xenon available in five colors colors - red, green, amber, blue and clear.
- Flash rate for LED is 7 micro flashes approximately every second for increased visual perception.
- Xenon flash rate 60 to 80 per minute
- Can be mounted in any orientation including lens in the UP or SIDE positions.
- Materials: High strength 30% glass-filled thermoset polyester body with Lexan® lens. Resists corrosive effects of most chemicals, hydrocarbons and solvents
- Designed for indoor and outdoor applications
- The NVSL Series LED Strobe is designed for warning and signaling applications. This fixture is made with a high strength thermoset polyester housing with polycarbonate lens for maximum corrosion resistance, making them suitable for harsh and hazardous environments.
Specifications
Specifications
- Country of Origin
- United States
- Hub Size
- 3/4"
- Optic Type
- Polycarbonate Globe - Green
- Special Features
- The NVSL Series LED Strobe is designed for warning and signaling applications. This fixture is made with a high strength thermoset polyester housing with polycarbonate lens for maximum corrosion resistance, making them suitable for harsh and hazardous environments.
- Finish Type
- Powder Epoxy Paint
- Lamp Type
- Steady
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- GRN LED ST 120-240VAC PEND+GRD
- Harmonization Code
- 8531809051
- MSDS Flag
- No
- Light Source
- LED
- Series
- NV Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936070438
Hazardous Rating(s)Class I, Division 2, Groups A, B, C, D;Class I, Zone 2, Groups IIC, IIB, IIA;Class II, Division 2, Groups F, G;Class III, Divisions 1 & 2
IP RatingIP66
MountingPendant
Voltage Rating120-240 VAC
Frequency Rating50/60 Hz
Mounting TypePendant
Class CodeD20
Freight Class Code06316009
Image Actual Or RepresentativeA
Sub Class CodeD20D202
MaterialPolyester, Fiberglass Reinforced
Base Unit of MeasureEA
Certifications
- EU RoHS Indicator
- Contact Manufacturer
