Square D

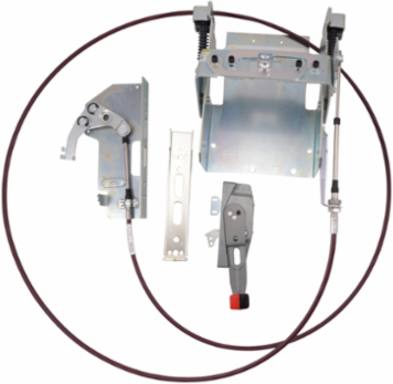

Square D 9422CLA31 Cable Operated Disconnect Mechanism, 400A, 36 Inch Cable, NEMA Rated

Cable Operated Disconnect Mechanism, 400A, 36 Inch Cable, NEMA Rated
  • MPN: 9422CLA31
  • UPC: 785901353249
  • PPN: SCH-9422CLA31

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1212.15/ EA

Description

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with LAL, LHL and Q4L circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 400 A. This mechanism has a 36 inch long cable. 9422A1 operating handle is overpacked with this disconnect switch. The handle is NEMA 1, 3, 3R and 12 rated. Cable operated mechanism is UL Component Recognized and CSA certified

Specifications

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Mercury Free
Yes
Eu Rohs Directive
Compliant with Exemptions
Reach Free Of Svhc
Yes
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

Specifications

Range Of Product
9422C
Product Or Component TypeSingle Cable Operating Mechanism

Complementary

Number Of Cables
1
Provided Equipment
6 in handle included
Cable Length36 in
Circuit Breaker NameLAL/LHL 2 || LAL/LHL 3 || Q4L 2 || Q4L 3

Contractual warranty

Warranty
18 months

Downloads
