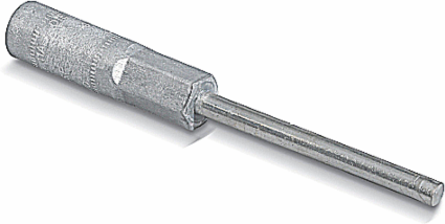

Blackburn PTSK 2/0 Shrouded Compression Pin Terminals, Aluminum 2/0, 4 Inch Length

MPN: PTSK 2/0
UPC: 783786742707
PPN: T-B-PTSK 2/0

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$61.56/ EA

Qty:

Loading add to cart quantity...

Description

Shrouded Compression Pin Terminals - Common Die Series, conductor size Aluminum 2/0 Stranded, 2/0 ACSR, solid Copper pin .324, shroud id .750, installing dies 840,11A,76,TX,249, length (P) 4 inch, length (B) 1-3/4 inch.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121432 Electrical terminals

Brand Name: Blackburn

Special Features: Made from pure Electrolytic Aluminum which provides high strength and high conductivity. Prefilled with Oxide Inhibitor to prevent Oxidation. Metal Sealant protects Pin/Body from Moisture Intrusion

Connection: Crimp / Compression

Material: Aluminum and Copper

IGCC4603 Electrical terminals

TypeShrouded Compression Pin Terminals

ApplicationRainshield Protection for Insulated Cable installed in Exposed Areas

Wire SizeAluminum Stranded 2/0, ACSR 2/0

Packaging

Inner Quantity: 25

Outer Dimensions (inches): 1x1x1

Outer Quantity100

Weight Uom1 lbs. Each
