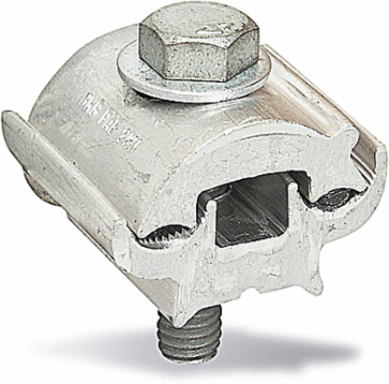

Adaptaflex PAE9939-6-7 Parallel-Groove Clamp, Aluminum, 1/2 Inch Bolt, 1000 kcmil Conductor Range

Parallel-Groove Clamp, Aluminum, 1/2 Inch Bolt, 1000 kcmil Conductor Range
  • MPN: PAE9939-6-7
  • UPC: 783786392988
  • PPN: T-B-PAE9939-6-7

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$160.44/ EA

Description

Parallel Groove Clamp, Aluminum Hardware, Wax Dip for Oxide Protection, Conductor Range Main 1000 kcmil - 397.5 ACSR 336.4 - 2/0 AR, TAP 397.5 ACSR - 3.0 Stranded 2/0 - 6 AR

Specifications

Packaging

Inner Quantity
5
Outer Quantity
25
Weight Uom
85.76 lbs. per 100
Inner Dimensions (inches)10.5x7.25x3.31
Outer Dimensions (inches)19.38x11x7.63

North American Specifications (UNSPSC)

UNSPSC
39121449 Wire or cable compression splice
Brand Name
Blackburn
Special Features
Galvanized Steel Hardware Provides High Strength for Heavy-Duty Applications. Install with Live Line Tools you Already Have. Dual-Rated for Aluminum-to-Copper Connections.
Size
Height 2-13/16 X Length 3-1/2 X Width 3-7/64 inch, Bolt 1/2 inch
Conductor Range
Main 1000 kcmil - 397.5 ACSR 336.4 - 2/0 AR, TAP 397.5 ACSR - 3.0 Stranded 2/0 - 6 AR
Material
Aluminum
Mounting
None
IGCC4669 Wire or cable compression splice
TypeParallel-Groove Clamp
ApplicationSecuring Conductors
ConnectionBolted
Number Of Conductors2
InsulationNone
Environmental ConditionsAll Seasons / Conditions
