Klein Tools KT4602 Parallel Jaw Grip with Hot Latch, 5 Inch Jaw Length, 10,000 lb Max Load
Klein Tools KT4602 Parallel Jaw Grip with Hot Latch, 5 Inch Jaw Length, 10,000 lb Max Load
- MPN: KT4602
- UPC: 092644477553
- PPN: KLT-KT4602
- UNSPSC: 27111712
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$471.46/ EA
Description

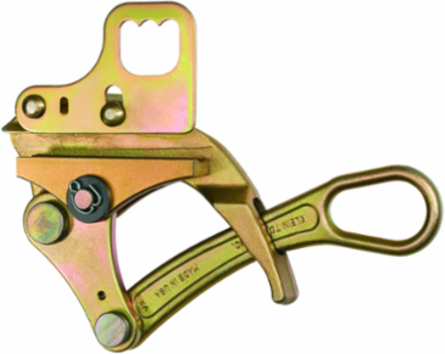

The Klein KT4602 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4602 has a jaw length of 5-Inches.
Features
- Versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed
- Round jaw holds 0.30 to 0.80-Inch (7.62 to 20.30 mm) diameter cable range
- Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
- Hot latch closes automatically to guard wire
- Made in USA
- Max Safe Load of 10,000-Pound (4536 kg)
- Weight: 7.2 pounds
- Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
- Hot Latch
Specifications
Specifications
- Cable Type
- ACSR, AAC, Copper
- Material
- Steel
- Type
- Parallel Jaw Grip
- Hot Latch
- Yes
- Locking Handle
- No
- Teeth Type
- Coarse
- Overall Width (Inch)
- 6.5
- Overall Length (Inch)
- 13
- Jaw Length (Inch)
- 5
- Maximum Safe Load (kg)
- 4535.9
- Jaw Length (cm)
- 12.7
- Weight (kg)
- 3.2
- Width
- 6.5000 in
- Weight
- 7.0000 lbs
ApplicationWire Pulling
Jaw TypeRound
Cable Diameter0.3" to 0.8" (7.62 to 20.32 mm)
SpringYes
Swing LatchNo
Overall Width (cm)16.5
Overall Height (Inch)1.375
Maximum Safe Load (lb)10000
Overall Length (cm)33
Weight (lb)7
Overall Height (cm)3.5
Height1.3750 in
Depth13.0000 in
