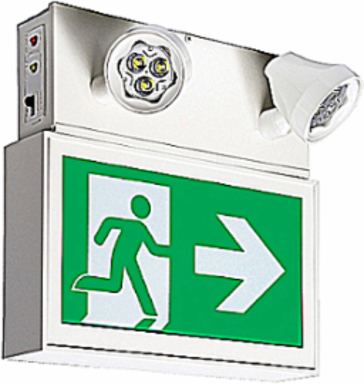

Thomas & Betts EAC1W12502LJUNTP Pictogram Combination Unit, 12-1/8 Inch Height x 14-1/2 Inch Width, 50W
Thomas & Betts EAC1W12502LJUNTP Pictogram Combination Unit, 12-1/8 Inch Height x 14-1/2 Inch Width, 50W
- MPN: EAC1W12502LJUNTP
- UPC: 782683530424
- PPN: T-B-EAC1W12502LJUNTP
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1183.33/ EA
Description
Pictogram Combination Unit, single face, universal mount, Colour: factory white, Battery Type: lead-calcium, Battery Wattage: 50W, 120/347VAC, Voltage DC: 12V, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 12V, Lamp Wattage: 6W, self-powered, diagnostics, non-audible, tamper-proof screws, Head Style: standard, Battery Run Time (Minimum): 30 minutes
Features
- Legend illuminated by long-life white LED’s
- Comes standard with two pictogram films per face, for direction selection
- Comes standard with two high-performance 4-watt MR16 LED lamps
- Sealed, maintenance-free Lead-Calcium battery
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39111707 Combo light unit exit
- Brand Name
- Emergi-Lite
- Application
- Institutional, Commercial, Hospitality
- Wattage
- 50W
- Battery Runtime
- 30 minutes
- Lamp Type
- MR16 LED
- Legend
- On
- Material
- Steel / Aluminum
- Color
- Factory white
IGCC3938 Combo light unit exit
TypePictogram Combination Unit
StandardCSA
Voltage Rating120/347VAC, 12VDC
BatteryLead-Calcium
Number Of Lamps2
Size12-1/8 + 1-1/8 Inches Height x 14-1/2 Inches Width
MountingUniversal
Lamp Wattage6W
Packaging
- Outer Quantity
- 1
- Weight Uom
- 13 lbs. Each
Outer Dimensions (inches)1x1x1
